Automatic Rock Slab Stone Round Machine JGYM08S

  • JGSZYM08S stone straight edge grinding machine adopts a set of artificial intelligence operation control system,
  • Each mechanical action is controlled by a computer - written program.

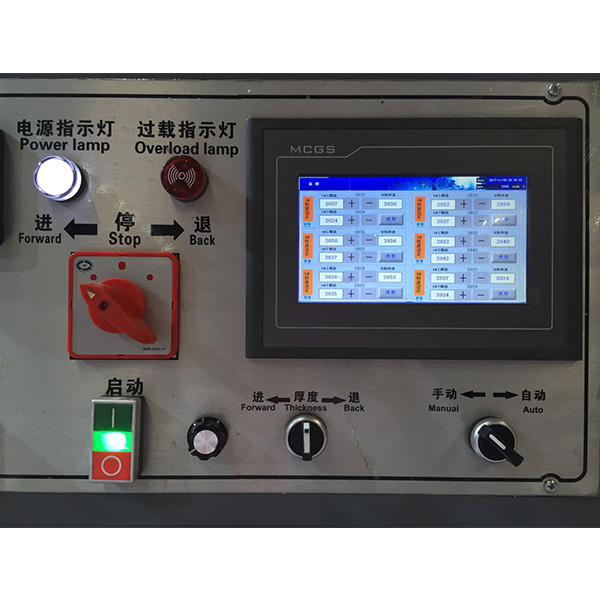

  • Through the man-machine interface and the operator to set the exchange,and the signal proveded by the automatic detection system

PRODUCT Description

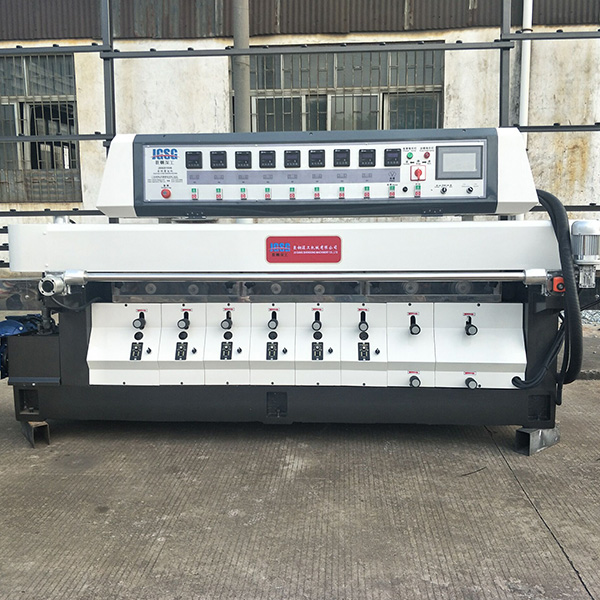

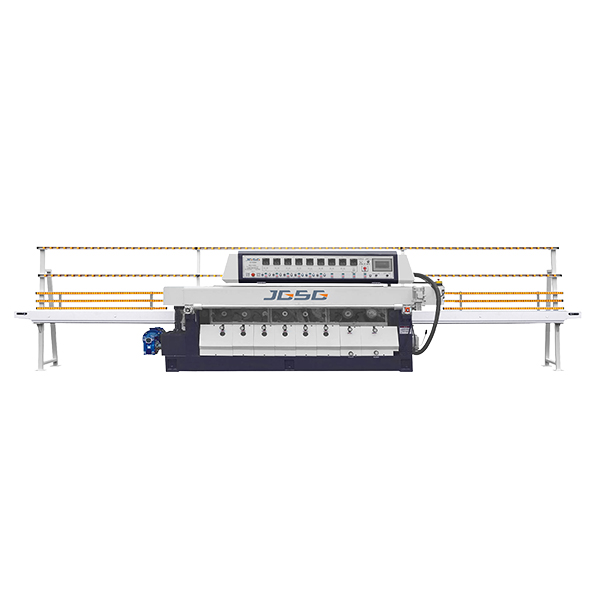

JGS08S stone straight edge grinding machine adopts a set of artificial intelligence operation control system,Each mechanical action is controlled by a computer - written program.Through the man-machine interface and the operator to set the exchange,and the signal proveded by the automatic detection system,the machine is set up two sets of programs are targeted for real-time operations.They are a granite program and a marble program.when working,just switch the program,you can do automatically stop working of the polishing system when there is stone,automatically stop working when there is no stone,and six polishing wheels can automatically compensate according to the degree of abrasive wear,effectively guarantee continuous and consistent polishing effect.Avoid the laborious workload caused by manual compensation until the polishing wheel is used up for replacement,and then replace it with a key wheel replacement function.The humanized function and intelligent operation are the characteristics of this device.

Model

JGS08S

power supply

380V/415V/220V  50HZ/60HZ

Power

32KW

Min.glass size

100*100mm

Glass thickness

12-60mm

Weight

3400KG

Transmission

Stepless speed regulation

Process speed

0.7-5m/min

Machine size

7000*1000*2000mm
