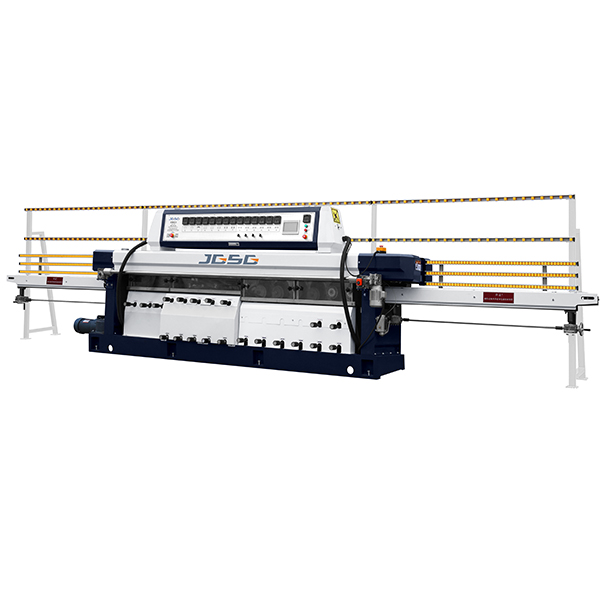

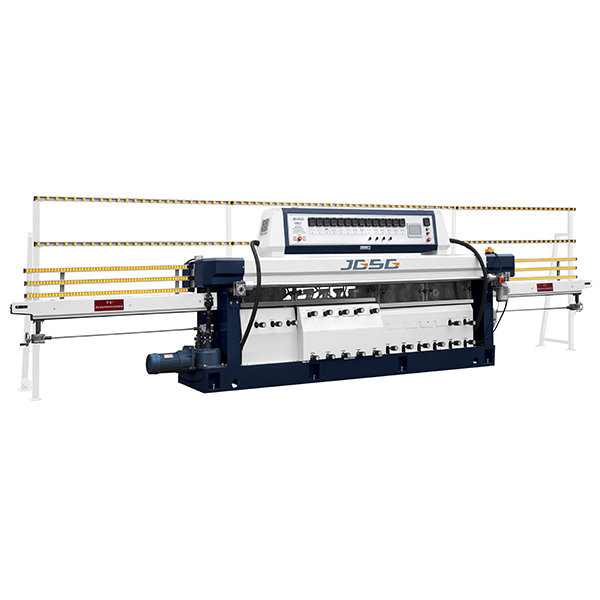

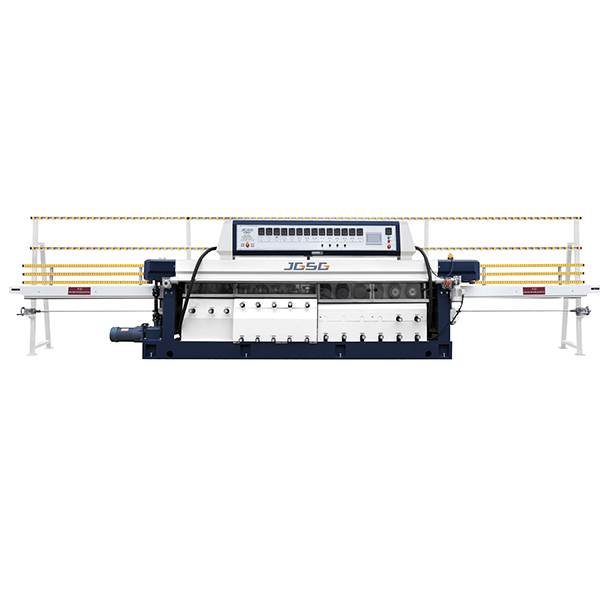

Automatic Rock Board Stone Round Machine JGS-14P
- The machine can be equipped with different grinding wheels,grinding the straight round edge of the flat-skin material,straight-line duck-bulled edge and straight line shaped edge coarse grinding ,fine grinding ,
- and polishing are completed at one time,and the effect after processing is close to that of the original stone sheet,Frequency control feed,can be arbitrary conversion processing speed.
PRODUCT Description
The machine can be equipped with different grinding wheels,grinding the straight round edge of the flat-skin material,straight-line duck-bulled edge and straight line shaped edge coarse grinding ,fine grinding ,and polishing are completed at one time,and the effect after processing is close to that of the original stone sheet,Frequency control feed,can be arbitrary conversion processing speed.
|
Model |
JGS14P |
|
power supply |
380V/415V/220V 50HZ/60HZ |
|
Power |
46KW |
|
Min.glass size |
100*100mm |
|
Glass thickness |
12-60mm |
|
Weight |
4300KG |
|
Transmission |
Stepless speed regulation |
|
Process speed |
0.7-3m/min |
|
Machine size |
8000*1000*2000mm |
