WD2236Air-float-glass-breaking-tilting-table

  • This machine working surface is equiped with air floating blower system for easy handing and shifting movement of the glass.
  • With hydraulically operated tilting table for stable and smooth ascending and descending motion.

PRODUCT Description

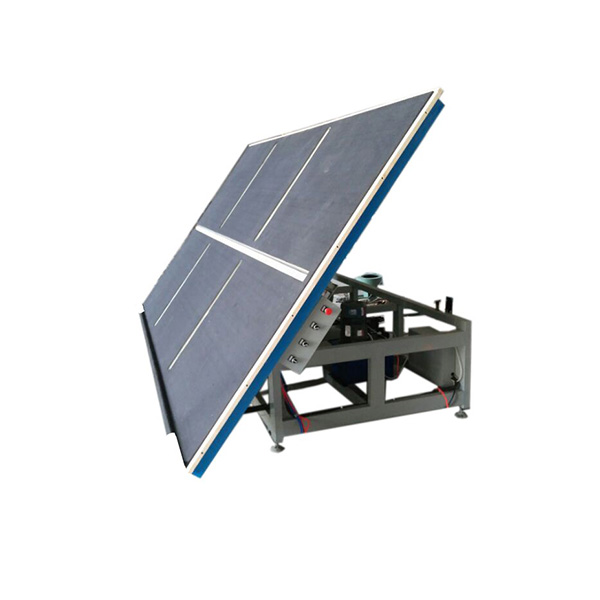

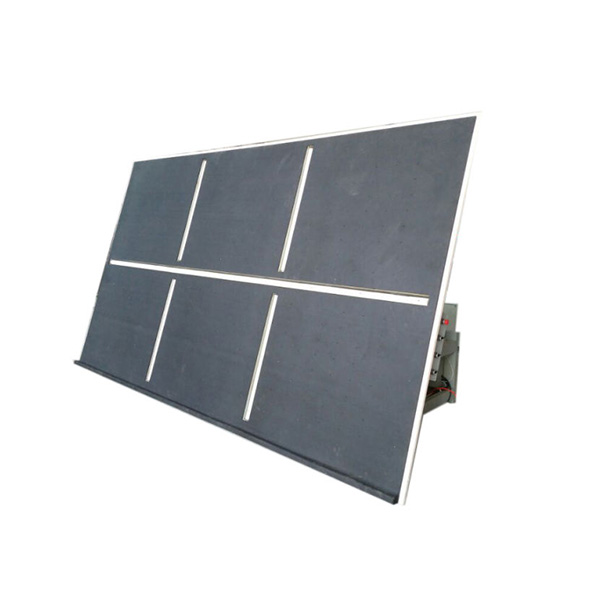

Air float glass breaking tilting table

This machine working surface is equiped with air floating blower system for easy handing and shifting movement of the glass.

With hydraulically operated tilting table for stable and smooth ascending and descending motion.

Have a automatic loading bar for catching the glass to ensure safety during loading of glass.It is automatically lifting and falling which is controlled by the control switch with the tilting

The pneumatically controlled X and Y  glass breaking bars can be activated by individual foot pedal swith to control each work position and section for large size cutting.

Table components:  Strong metal Frame, strong metal table ,air float system, air supply system ,breaking system, tilt system

Technical parameter:

1.input power: 380V,50HZ/ 220V,60HZ

2.3 PCS breaking bars

3.Blower air float

4.Power: 1.5 KW

5.Table size: 2200*3600mm

6.Weight: 800 KGS
