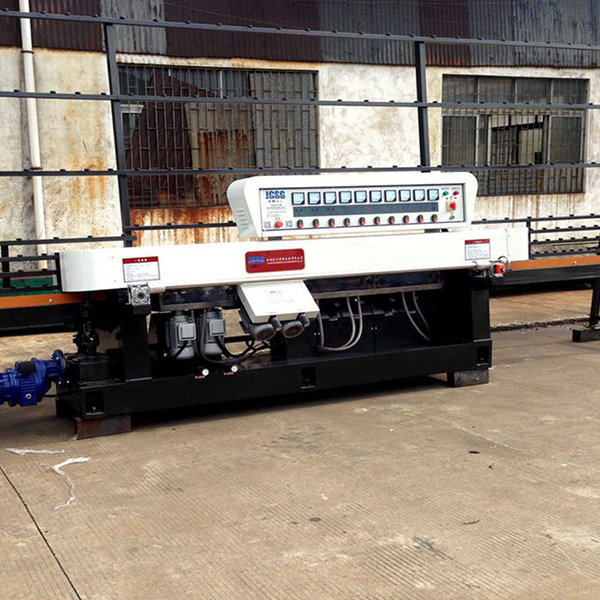

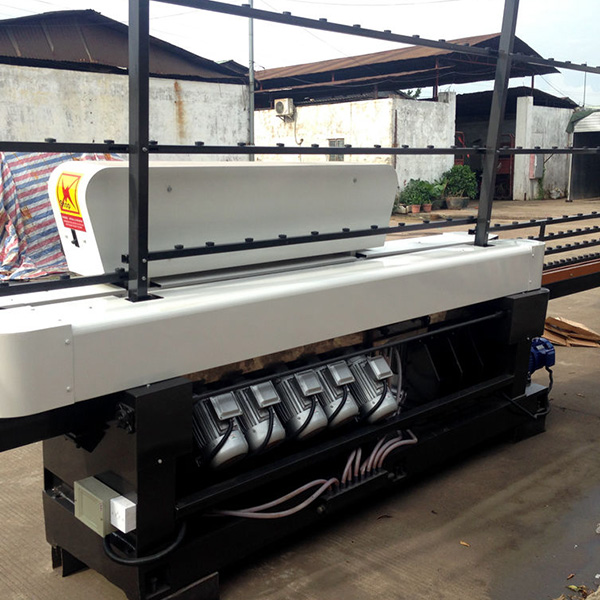

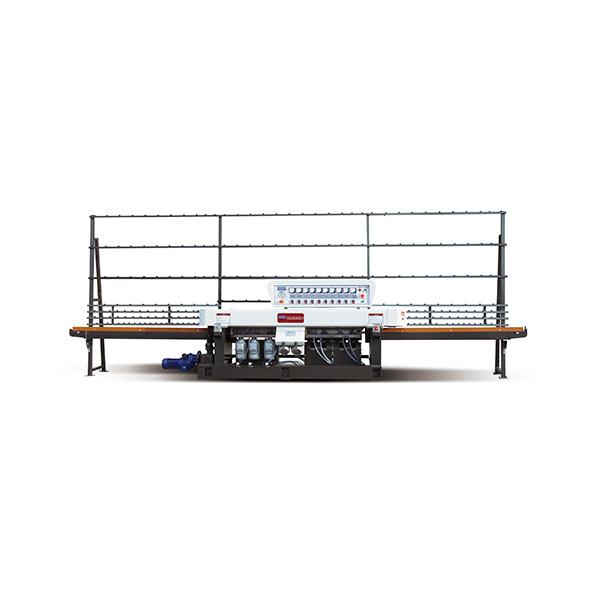

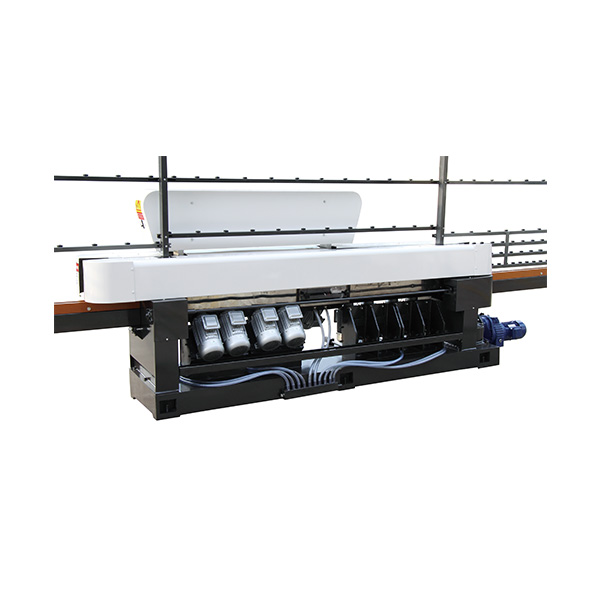

Glass Straight Edge Machine JGZM9325-45°
PRODUCT Description

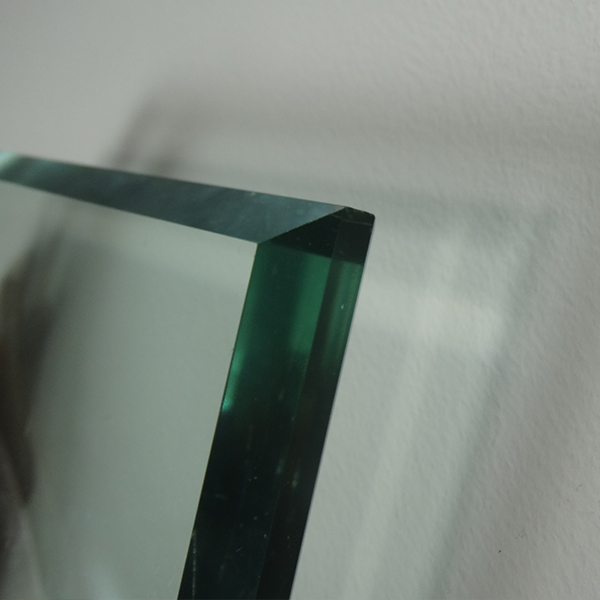

This machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time.The flat surface after polishing is close to bright and clean degree of glass matrix.When adjusting different processing thickness (able to refer to data display instrument on front-axle beam),former chamfering grinding head can move simultaneously along with the front-axle beam.It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,and thereby is necessary equipment for glass deep processing.
Model |
JGZM9325-45° |
Power supply |
380V 50HZ/60HZ |
bench height |
750mm |
Power |
19.75kw |
Min glass size |
80*80mm |
Feeding speed |
0.7-5m/min |
Glass thickness |
3-25mm |
Weight |
3000Kg |
Oversize |
7000*1000*2000mm |
