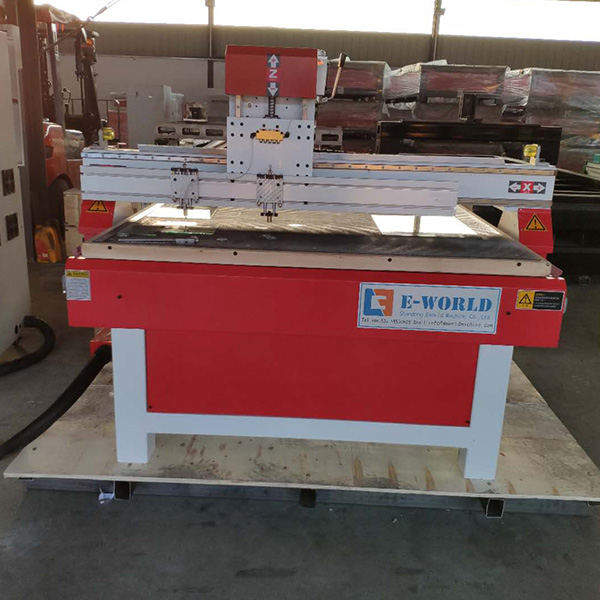

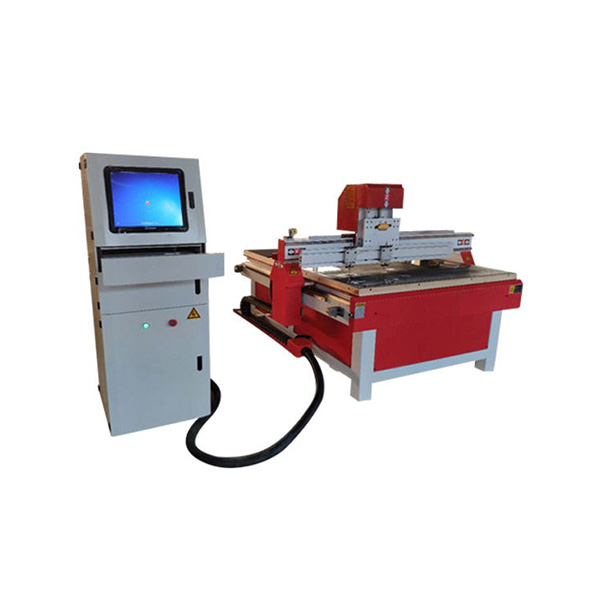

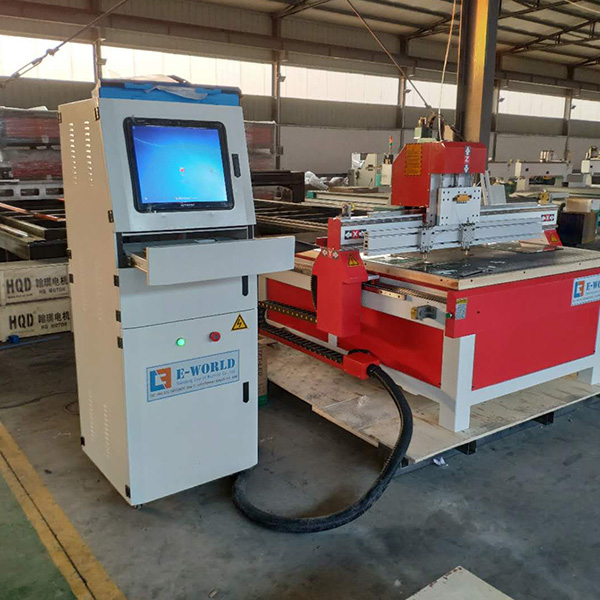

NC 1313 Automatic Glass Cutting Machine

  • Work flow: After starting the inputting machine, arms automatically suck glass from the shelf.
  • Under sensor controlled, glass automatically find glass edge in the X and Y directions.

PRODUCT Description

Introduction:

1) Work flow: After starting the inputting machine, arms automatically suck glass  from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.

2)The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.

Feature

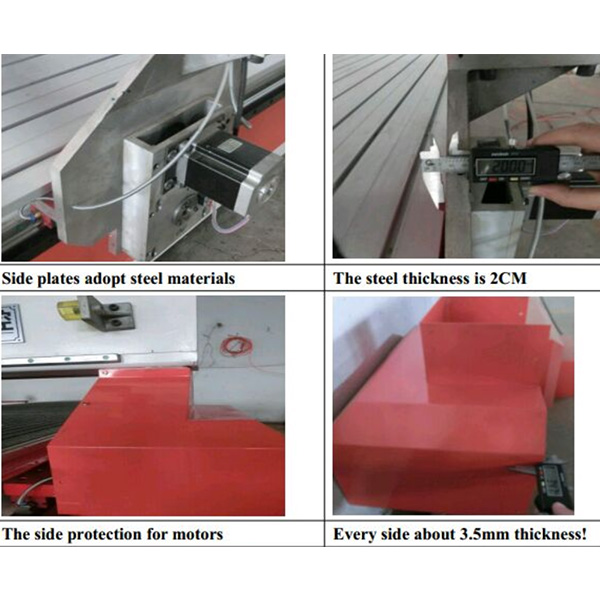

1.Bed using thick wall pipe welding and become, the high temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.

2.The X,Y axis adopt reliable motor drive, selected pairing, ensure the smooth movement.

3.Using high precision level gear rack drive, high precision, speed and strength.

4.Adopts imported linear guide square, high precision, long life.

5.Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop

6.Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on the many kinds of CAD/CAM design software.

7.Performance worry about: a breakpoint renewal carving, power off recovery, processing time prediction, and other functions, the real human nature design.

Machine details:

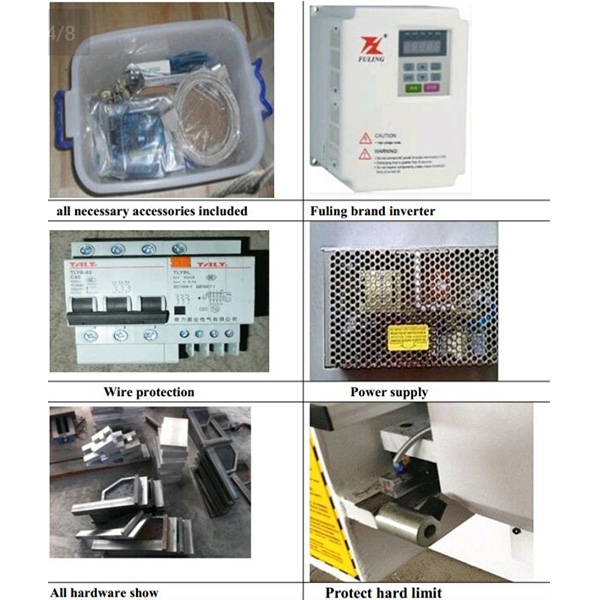

Equipment:

1.    Software: Ncstudio,Wenta

2.  English instruction about manual guide, how to install machine

3. AC stepper motor:

4.Air: 0.75 KW

5.Cutting head: Auto oil

6.Rack/Guides: reliable brand in china

7.CAD Designed graph and figure,all cutting are fully automatic

8.The tabletop: The smoothness≤±0.2mm/m

1.

Working size

1300*1300mm

2.

Cutting thickness

1-12mm

3.

Table size

1300*1300mm

4.

Cutting speed

20m/min

5.

Machine bed

Steel lathe bed

6.

X-Y-Z movement

Imported gear rack

7.

Working accuracy

≤±0.15mm/m

8.

Repositioning accuracy

≤±0.15mm/m

9.

Driver motors

stepper

10.

Working voltage

AC 220V

11.

Total power

2.5 KW

12.

Command code

G code*uoo,*mmg,*plt

13.

Software

Artcam,Wenta

14.

Computer system

Windows 98/2000/XP/Win7

15.

control

Nc Studio

16.

Oil lubrication system

Automatic

17.

Table surface

bakelite plate

18.

Packing size

1770*1370*1780mm

19.

Weight

500KGS

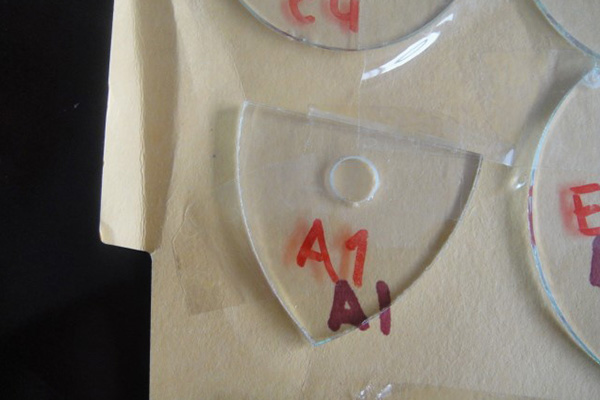

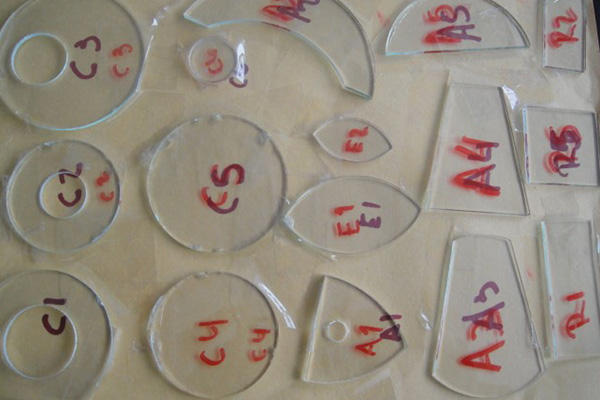

Sample gallery
