JGZM11325

PRODUCT Description

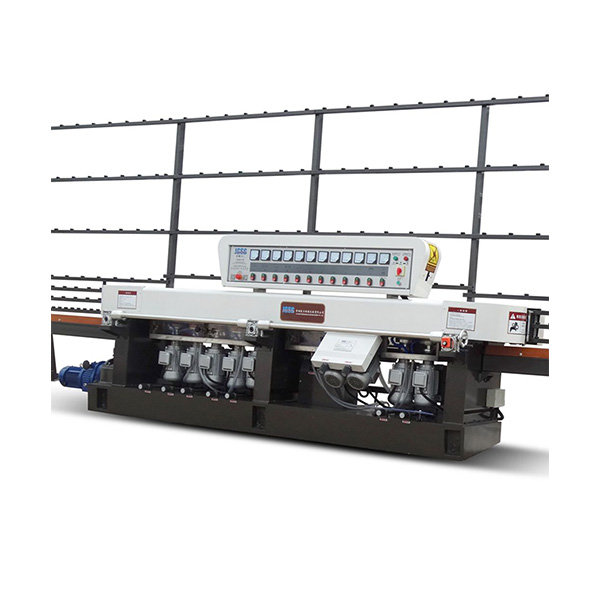

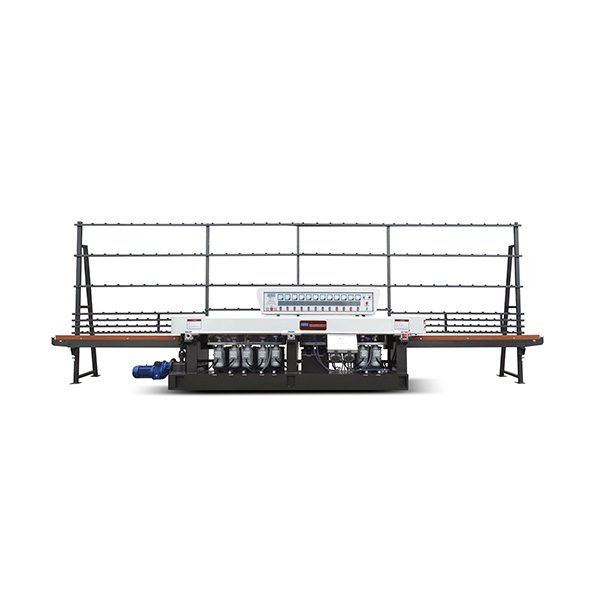

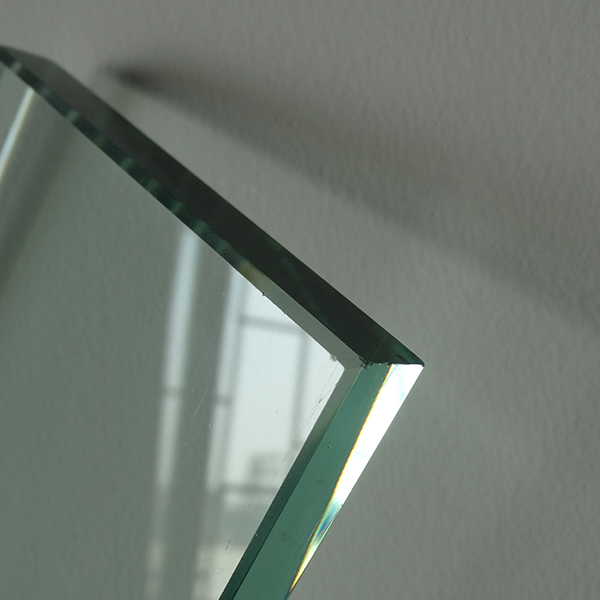

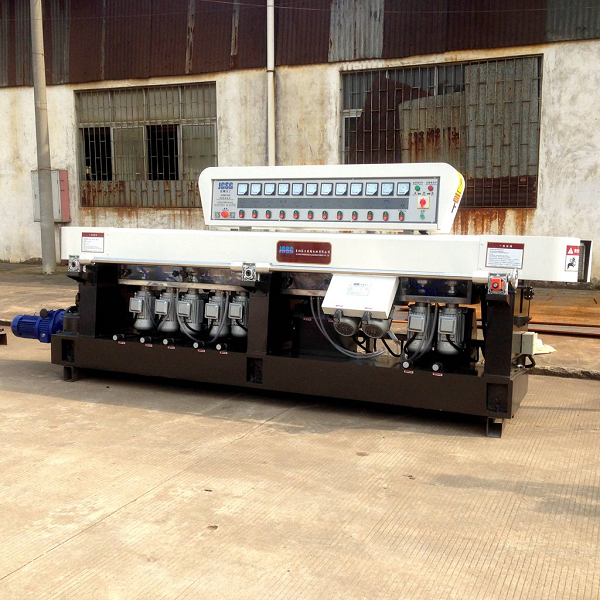

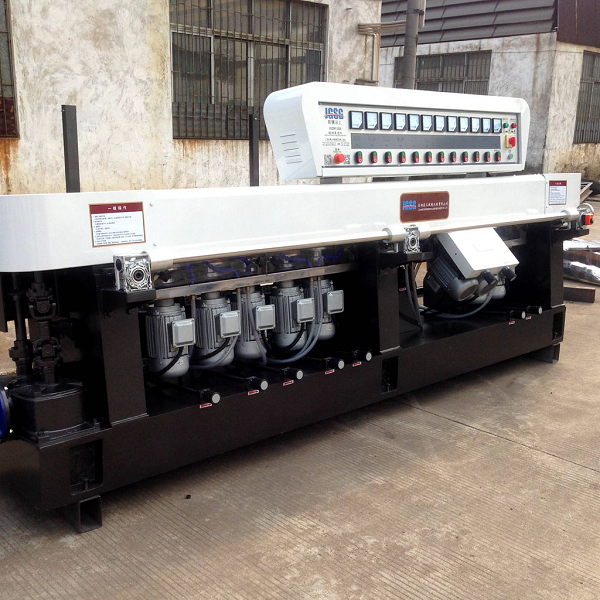

This machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time.The flat surface after polishing is close to bright and clean degree of glass matrix.When adjusting different processing thickness (able to refer to data display instrument on front-axle beam),former chamfering grinding head can move simultaneously along with the front-axle beam.It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,and thereby is necessary equipment for glass deep processing.

Model

JGZM11325

Power supply

380V 50HZ/60HZ

bench height

750mm

Power

24kw

Min glass size

80*80mm

Max glass size

2.44m-3.66m

Feeding speed

0.7-5m/min

Glass thickness

3-25mm

Weight

3800Kg

Oversize

7600*1000*2500mm

Transmission

Stepless speed regulation
