JGPS16

PRODUCT Description

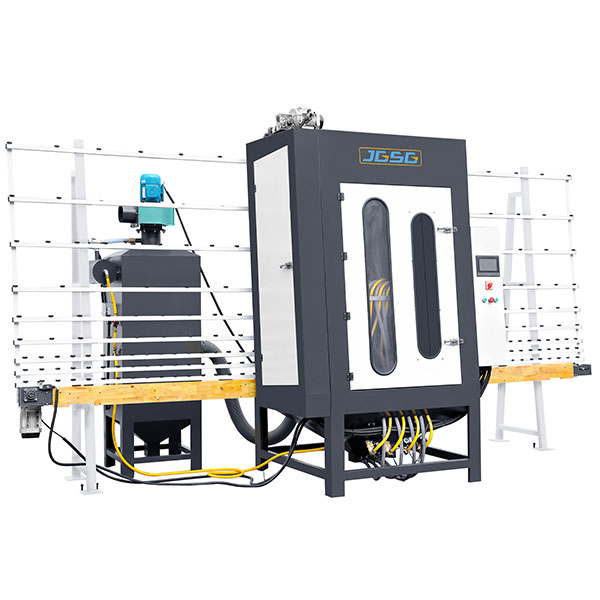

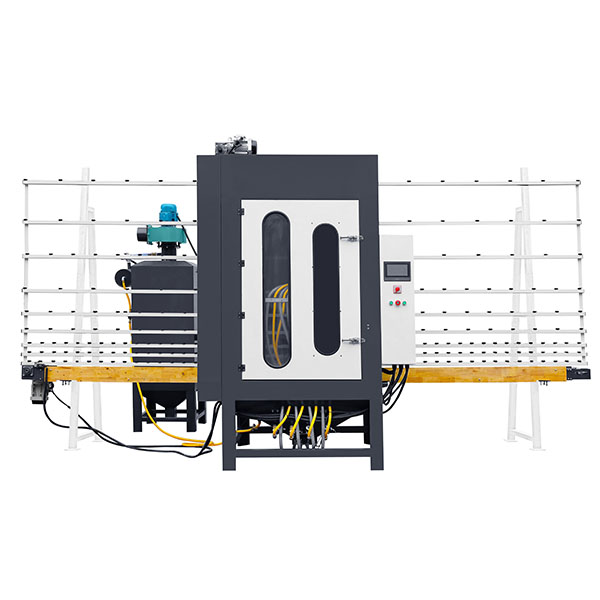

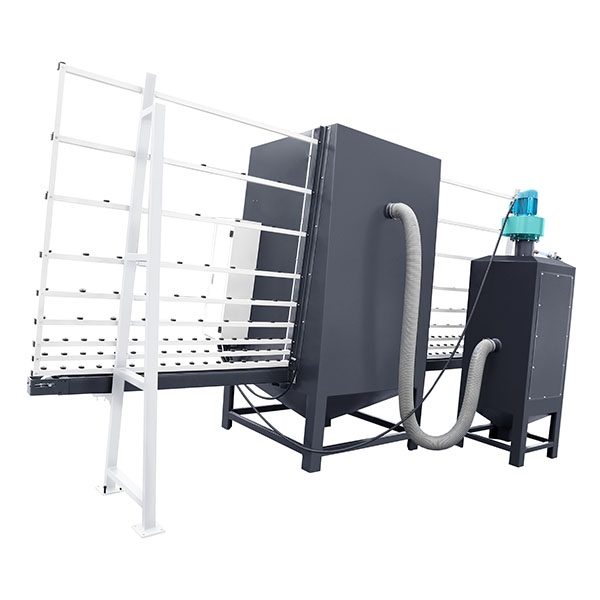

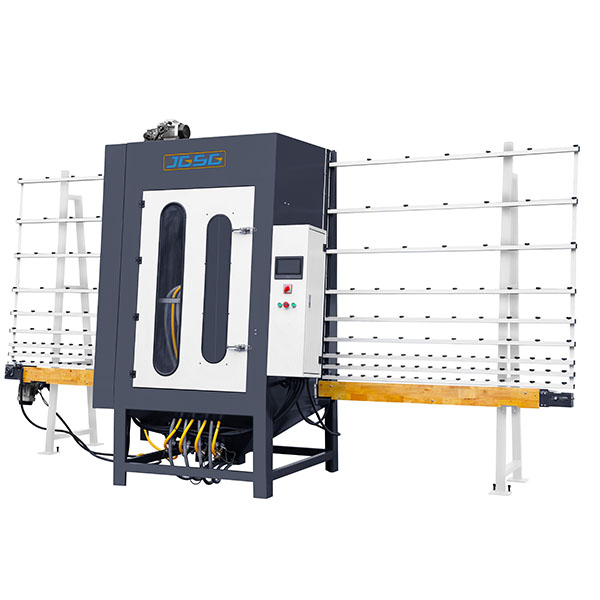

JGSG Glass sandblasting machine adopt touch screen operation,Adopt special material for nozzle,Automatically dust collection,adopt reverse blowing mode for filter bag dust cleaning,Low cost for usage and maintenance.

Model

JGPS16LA

Power supply

380V 50HZ/60HZ

Power

3.5kw

Minimum glass size

350mm

Maximum blasting height

1600mm

Transmission speed

3.5m/min

Glass thickness

3-50mm

Weight

1000Kg

Oversize

4700*1500*2300mm

Automatic gun number

3

Manual gun number

1

Standard gun nozzle inner diameter

8mm

Gun lifting speed

8m/min

Glass conveying speed

3.6m/min

Work efficiency

20m²/h

Conveyor belt width

60mm

Lifting belt width

32mm

Lift motor power

0.37KW

Drive motor power

0.75KW

Dust removal fan power

2.2KW

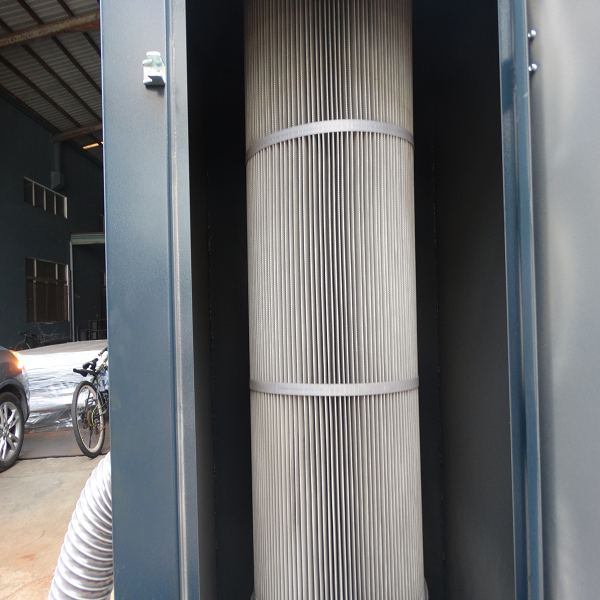

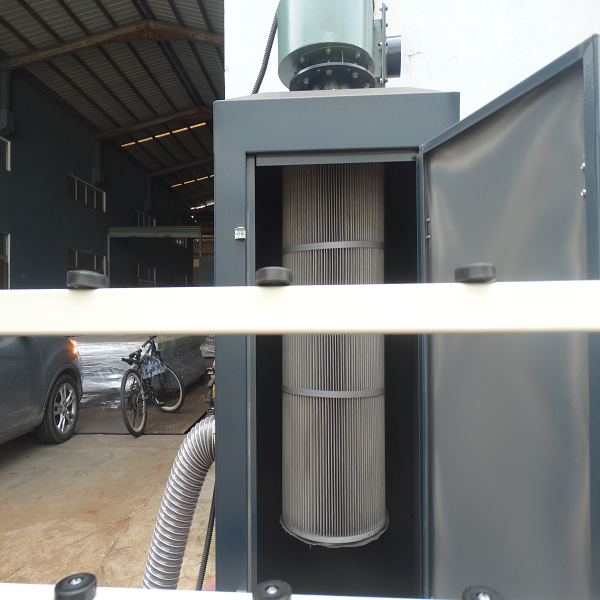

Dust removal method

Bag type

Filter bag cleaning method

electric

Working source pressure

0.6-0.8MPA

Working gas source flow

More than 3m³/min

Total power

3.5KW

Processed glass thickness

3-50mm
