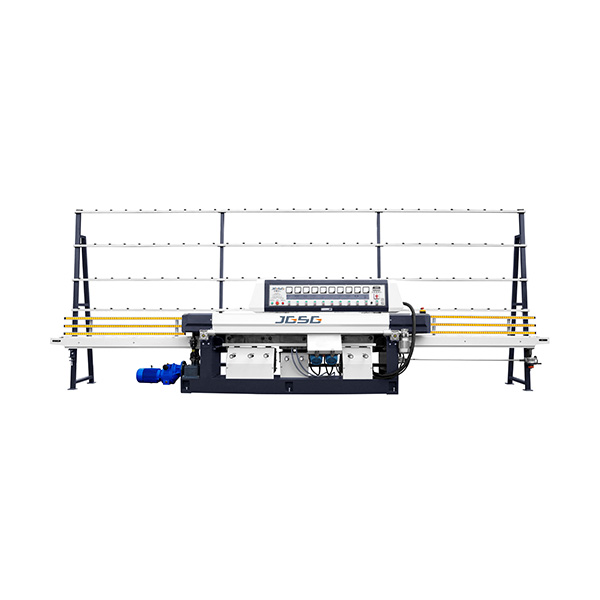

JGZM9325

  • The machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding and polishing at one time.
  • The flat surface after polishing is close to bright and clean degree of glass matrix.when adjusting different processing thickness(able to refer to data display instrument on front-axle beam),
  • former chamfering grinding head can move simultaneously along with the front-axle beam.It possesses the advantages of advances structure,

PRODUCT Description

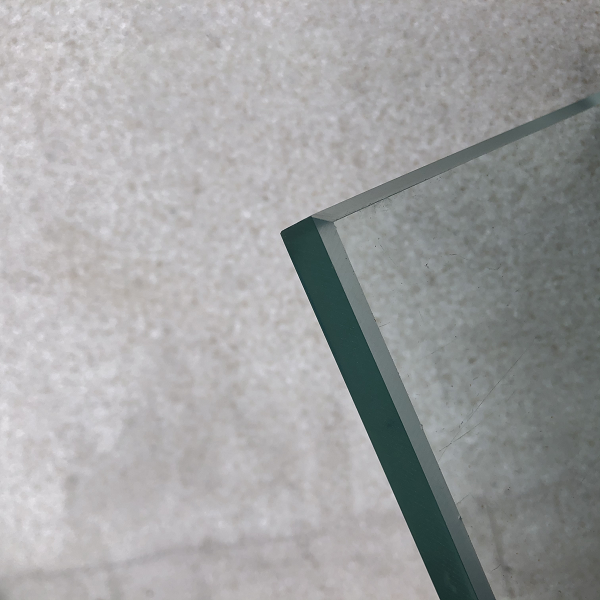

The machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding and polishing at one time.The flat surface after polishing is close to bright and clean degree of glass matrix.when adjusting different processing thickness(able to refer to data display instrument on front-axle beam),former chamfering grinding head can move simultaneously along with the front-axle beam.It possesses the advantages of advances structure,high working precision,easy operation and capacity of continuous processing for the same thickness,definitely being necessary equipment for glass deep processing.

Model

JGZM9325

power supply

380V/415V/220V/ 50HZ/60HZ

Power

19.75KW

Min.glass size

80*80mm

Glass thickness

3-25mm

Weight

3000KG

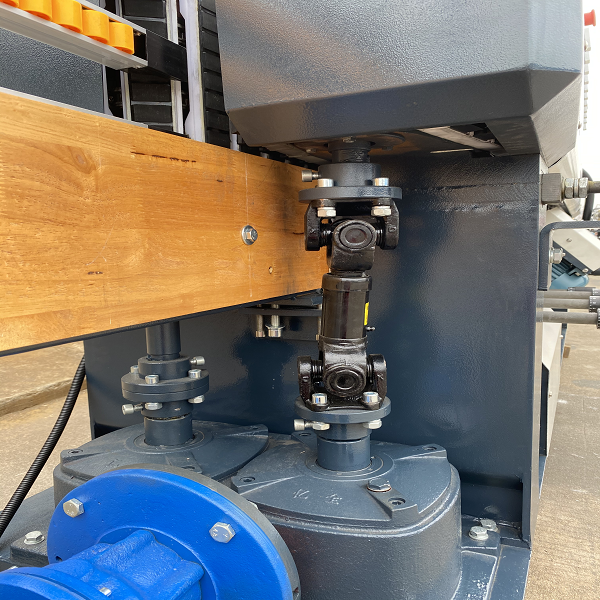

Transmission

Stepless speed regulation

Process speed

0.7-7m/min

Machine size

7000*1200*2500mm

Glass parallel error

±0.2mm/m

Glass chamfer bevel error

±0.2mm/m

Glass diagonal error

±0.3mm/

Bevel location error

±0.2mm/
