JGZK0222A

  • This machine adopts principle of centrifugal ejection in high-speed rotation,ejecting sand on processed surface and removing processing materials,
  • It can be used for mass production of flat frosted glass,and also can conduct frosted processing of characters and pattern on flat contrives a automatic

PRODUCT Description

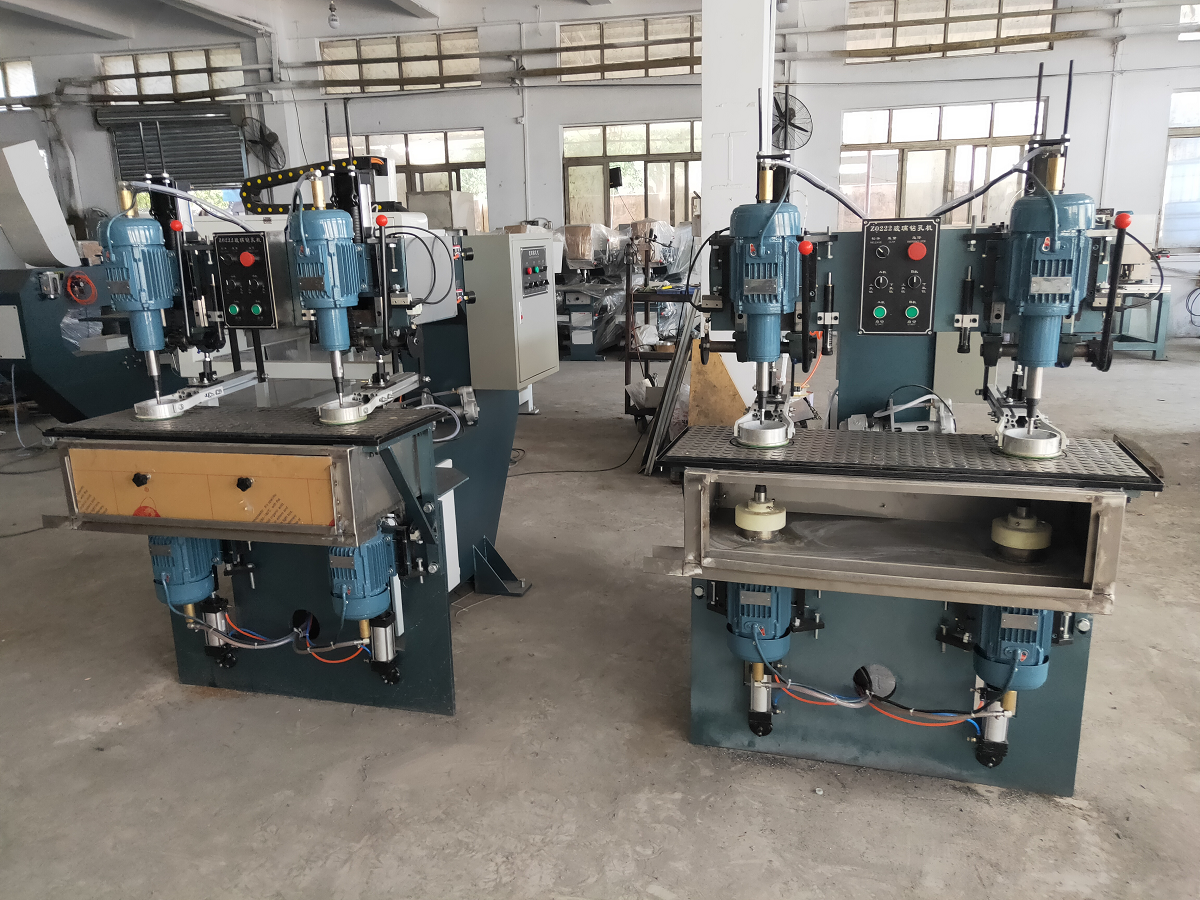

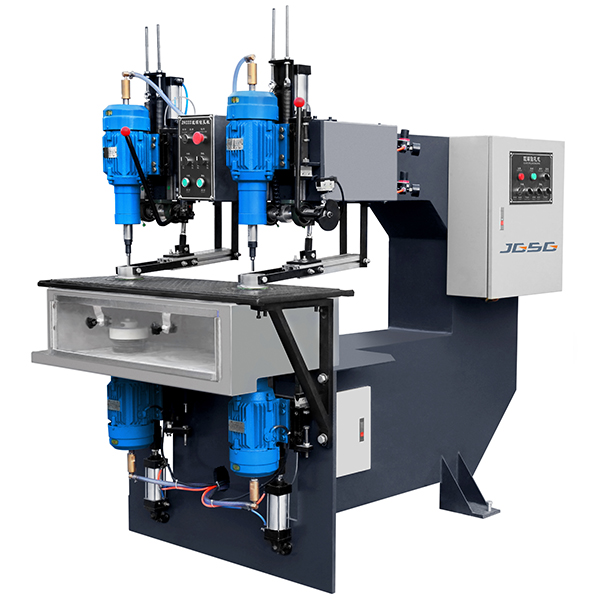

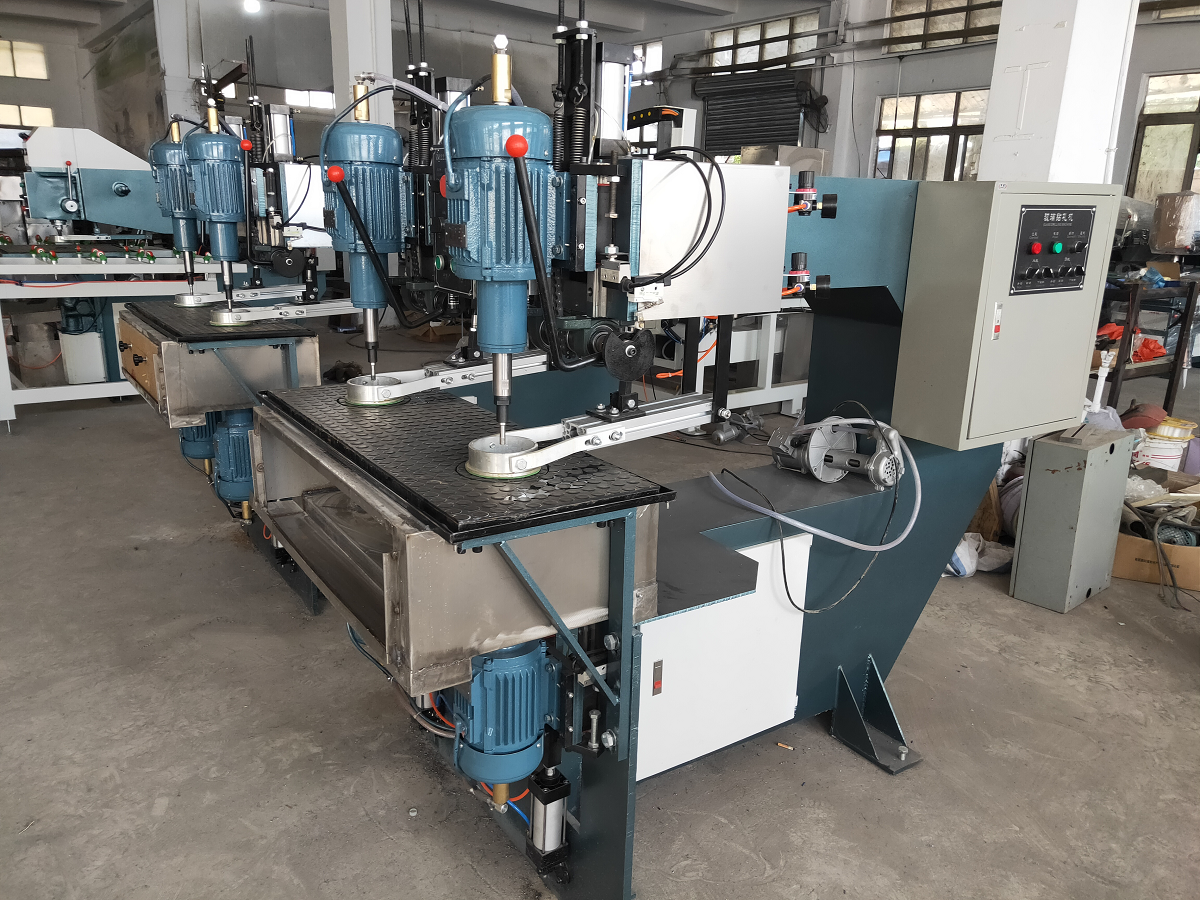

Model JGZK0222A Nesting Glass Drilling Machine adopts pneumatic way to clamp glass,upper and under drills successively drill holes and the under drill can rise automatically,Both of their position and speed are adjustable.Automatic feeding and workbench's pneumatic elevation ensure the feasibility of massive continuous production and processing.

Model

JGZK0222A

Power supply

380V 50HZ/60HZ

Power

3kw

Feeding speed

5-15m/min

Min.glass size

200*200mm

Max.glass size

2200mm-2700mm

Glass thickness

6-50mm

Weight

1200kg

Oversize

2200*2700*1700mm

Maximum hole distance

2000mm

Minimum hole distance

450mm

Platform height

900mm

Rotating speedsize

1400r/min、2800r/min、5000r/min
