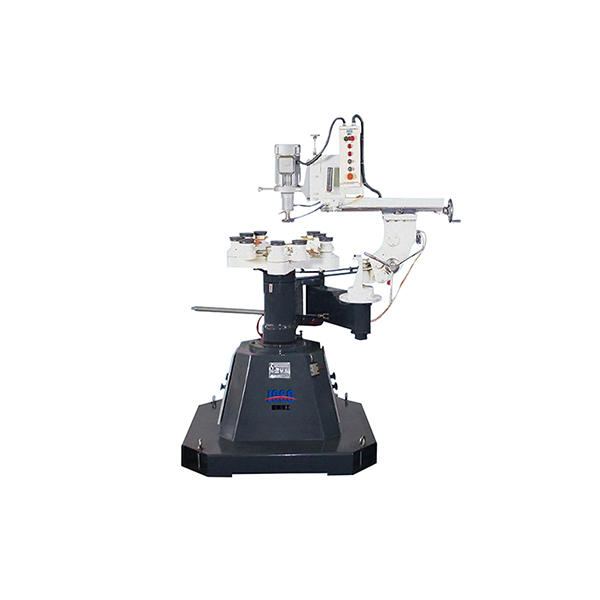

One-armed Inside and Outside Circle Irregular Edging Machine JGYM1320

  • This machine adopts principle of centrifugal ejection in high-speed rotation,ejecting sand on processed surface and removing processing materials,
  • It can be used for mass production of flat frosted glass,and also can conduct frosted processing of characters and pattern on flat contrives a automatic

PRODUCT Description

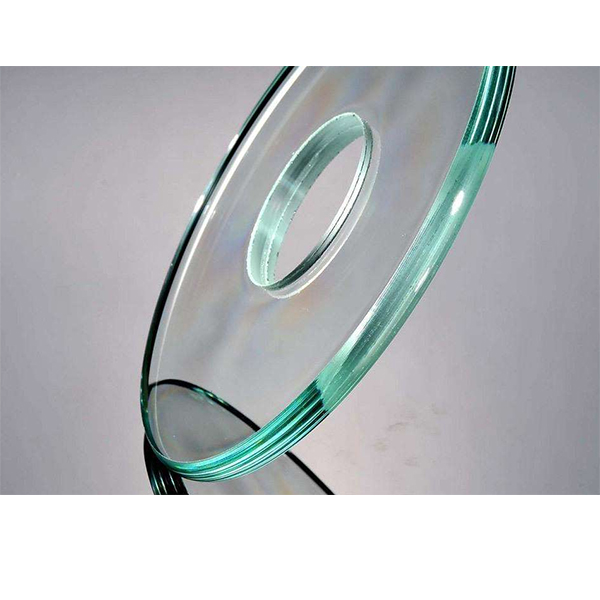

This machine is specially for processing of inside and outside round edge as well as duckbilled edge of plane glass, and its processed inside and outside peripheral contour can be perfect circle, ellipse or abnormal round. This machine is equipped with manual and pneumatic grinding ways, completing coarse grinding, fine grinding and polishing at one time.

Model

JGYM1320

Power supply

380V 50HZ/60HZ

Power

3kw

Min.glass size

unlimited

Max.glass size

unlimited

Glass thickness

3-30mm

Weight

800kg

Oversize

1770*900*1690mm

Bevel edge angle

0°-20°

Galss turning diameter

100-2100mm

Bevel edge wheel

φ150
