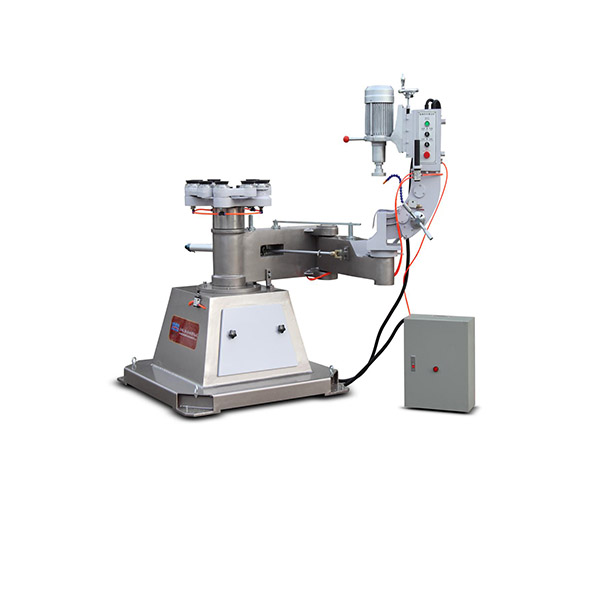

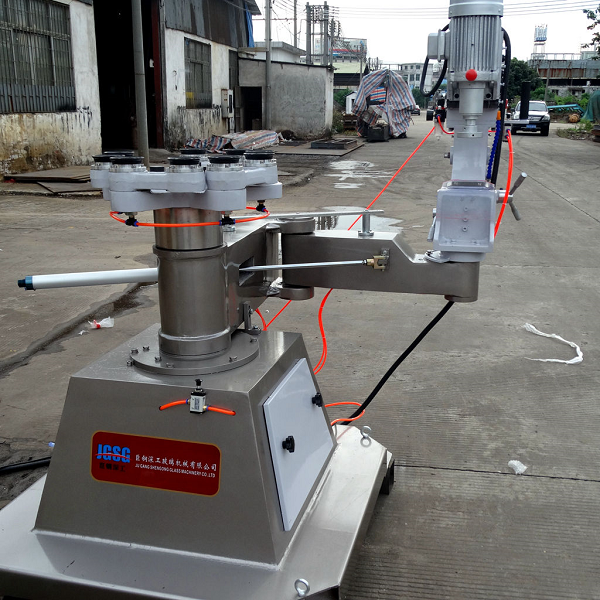

One-armed Irregular Edging Machine JGYM1320

This machine adopts principle of centrifugal ejection in high-speed rotation,ejecting sand on processed surface and removing processing materials,
It can be used for mass production of flat frosted glass,and also can conduct frosted processing of characters and pattern on flat contrives a automatic

PRODUCT Description

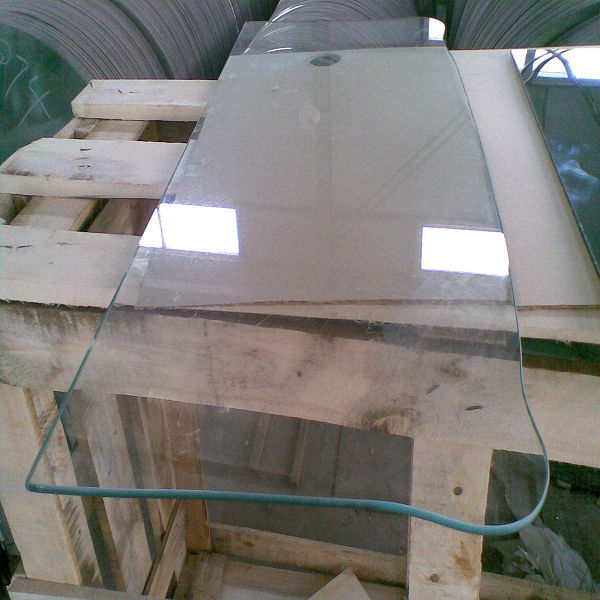

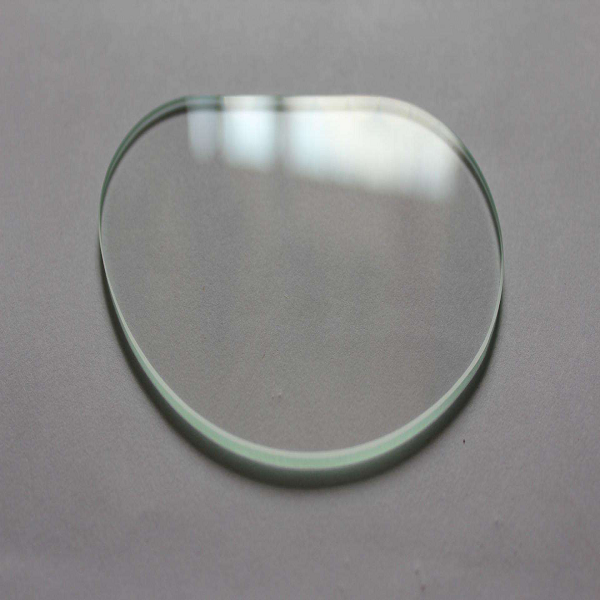

This machine is suitable for processing of circular are edge,duckbilled edge,edge and other shape deformation of various kinds of flat glass(depending on the shape of grinding wheels).The glass with simple shape can be implemented semi-automatic grinding.Aimed at the deficiency of previous models,This machine has specifically improved accuracy of the rotary table to ensure the grinding precision of the bevel edge;distinctively,it adds the brake system,eliminating the movement clearance,and in rotation it exerts the moderate load(adjustable)to make it keep no clearance action for a long time,thus greatly reducing the grinding vibration and making operation more convenient and efficient.

Model	JGYM1320
Power supply	380V 50HZ/60HZ
Power	3kw
Min.glass size	unlimited
Max.glass size	unlimited
Glass thickness	3-30mm
Weight	800kg
Oversize	17709001690mm
Bevel edge angle	0°-20°
Galss turning diameter	100-2100mm
Bevel edge wheel	φ150
