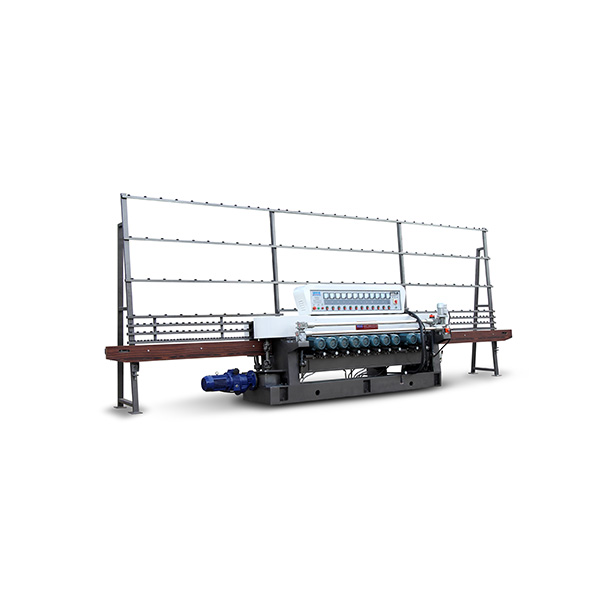

Glass Beveling Machine JGXM371

  • This machine is suitable for edging and polishing of flat glass’s bevel an bottom edge in bulk,combing bevel edge’s coarse grinding
  • fine grinding and polishing with bottom edge’s polishing at one time.The clamp plate using the forging parts
  • middle splint are refined with 40cr materials,so their wear ability can reach an incalculable limitation,In addition,the motors for polishing heads adopt international famous brand,Overall

PRODUCT Description

This machine is suitable for edging and polishing of flat glass’s bevel an bottom edge in bulk,combing bevel edge’s coarse grinding ,fine grinding and polishing with bottom edge’s polishing at one time.The clamp plate using the forging parts,middle splint are refined with 40cr materials,so their wear ability can reach an incalculable limitation,In addition,the motors for polishing heads adopt international famous brand,Overall,this is a practical beveling machine made up of good-quality components.

Model

JGXM371

power supply

380V/415V/220V  50HZ/60HZ

Power

26KW

Max.bevel width

35mm

Min.glass size

80*80mm

Glass thickness

3-12mm

Weight

4000KG

Bevel angle

0-27°

Transmission

Stepless speed regulation

Process speed

0.7-3.5m/min

Workbench height

2500mm

Machine size

7400*1200*2500mm

Glass parallel error

±0.2mm/m

Glass chamfer bevel error

±0.2mm/m

Glass diagonal error

±0.3mm/

Bevel location error

±0.2mm/
