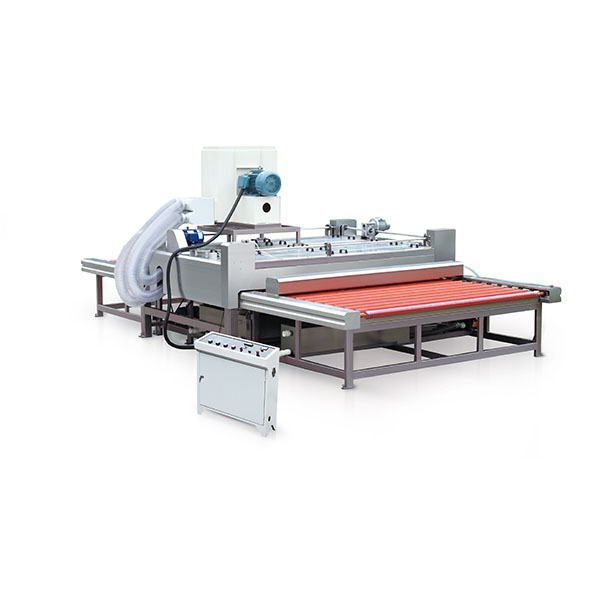

JGX2500

PRODUCT Description

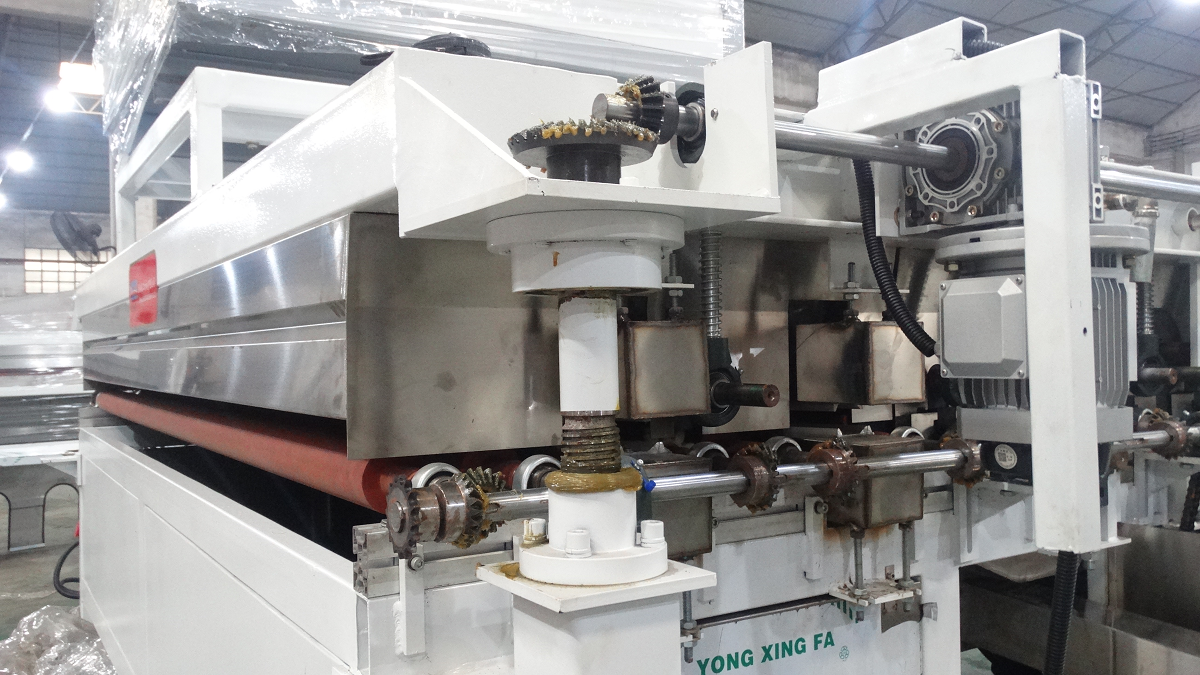

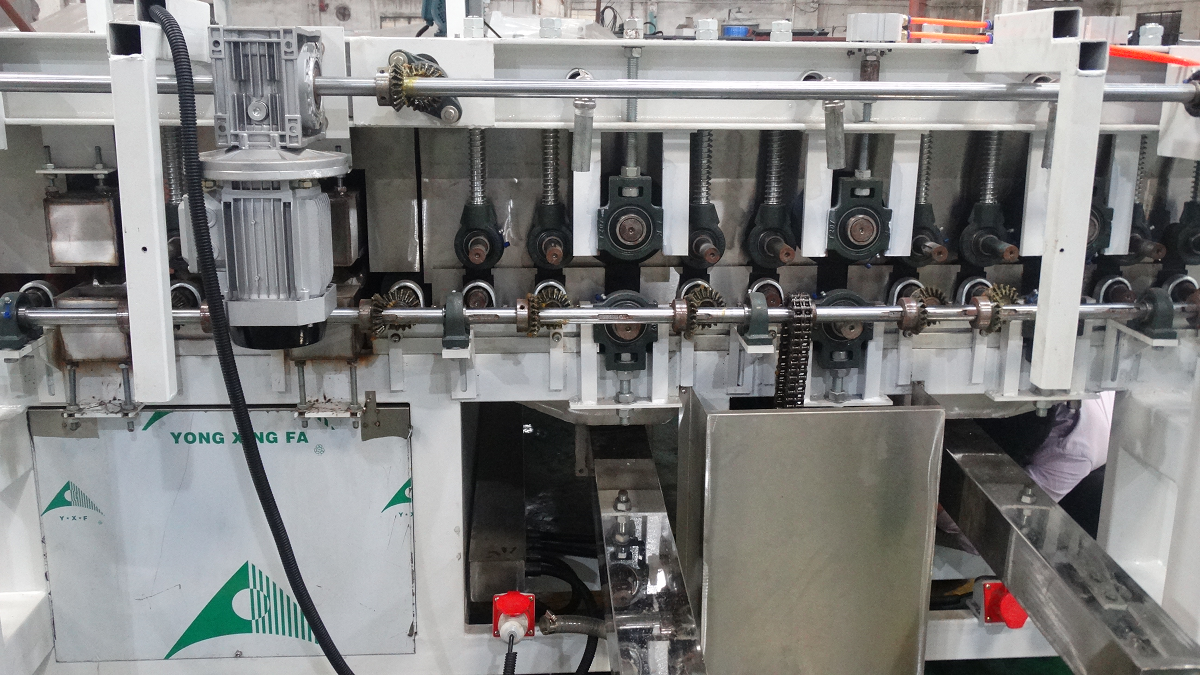

This class washing machine Its main driver is gear drive with frequency control and digital display;cleaning brush roller rotation is respectively driven by the upper and lower two sets of independent electrical belt,having a more smooth rotation speed and a longer service life;Cleaning department and drying department raise and down with the maximum lift of 350mm ,easy for cleaning and maintenance;Three pairs of brush configuration can wash ordinary coated glass and solar coated glass;Two pairs of specially-made air knife configuration with heating system own the advantages of big wind and good drying effect;It adopts aluminum alloy truss structure.



Product name

JGX2500

power supply

380V/50HZ

Power

27.8KW

Min.glass size

350*350mm

Glass thickness

3-30mm

Weight

4600KG

Transmission

Frequency converter

Process speed

                                                                within 5mm:3-10m/min

        within 8-12mm:3-8m/min

                                                              within 15-19mm:3-6m/min

Conveyor height

                                                                          900±30mmmm

Machine size

  5720*3600*2840mm

Max glass width

2500mm
