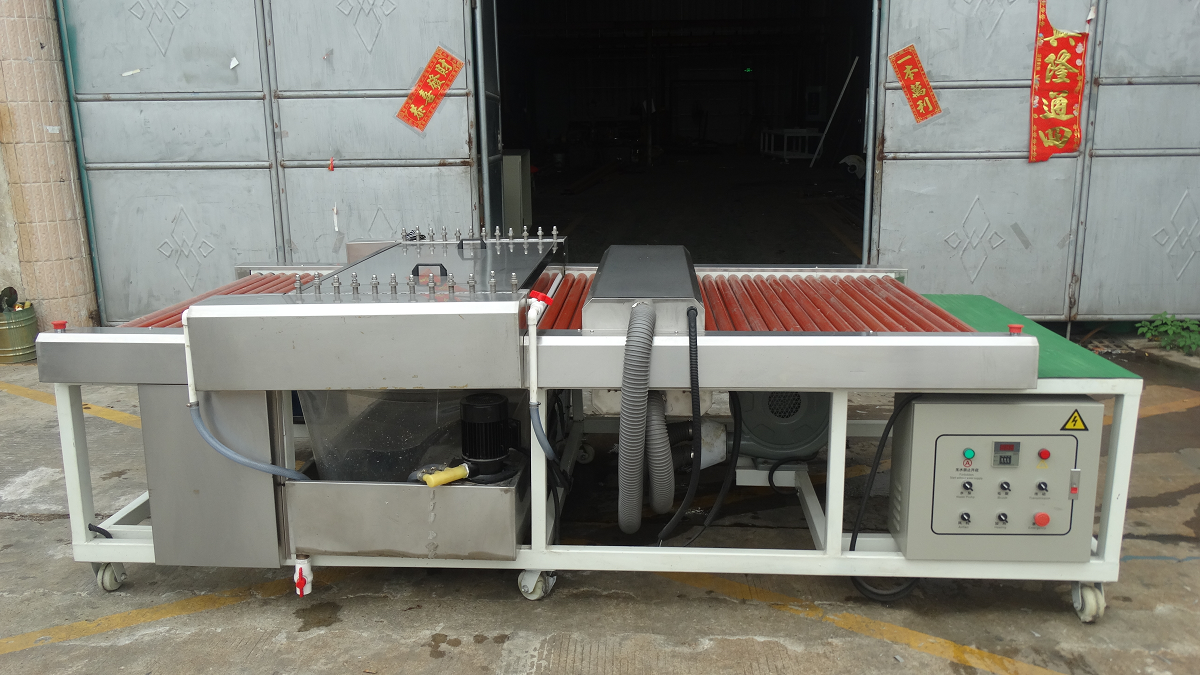

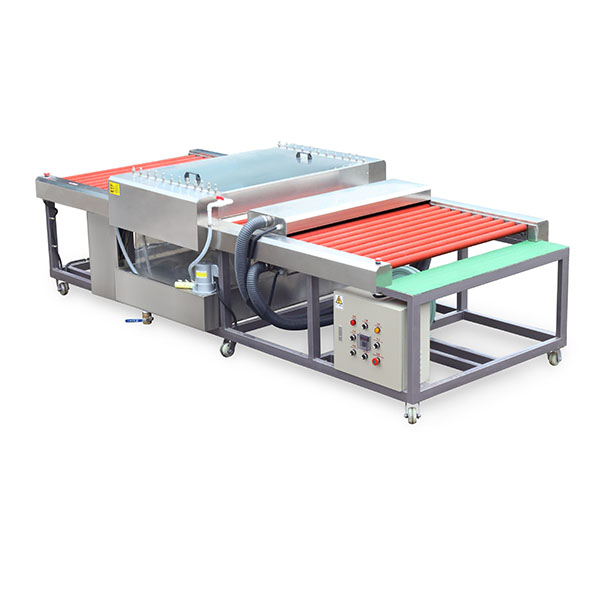

Glass Washing Machine JGX1200
PRODUCT Description
This glass washing machine is used for automatic cleaning and drying of glass of different thickness and lens,adopting horizontal transmission;it uses strong hot-air drying system for drying,temperature can be automatically controlled and be set freely,and conveying speed can be adjusted.
|
Product name |
JGX1200 |
|
power supply |
380V/50HZ |
|
Power |
8.74KW |
|
Min.glass size |
150*150mm |
|
Glass thickness |
3-10mm（Above 12mm can be customized） |
|
Weight |
600KG |
|
Transmission |
|
|
Process speed |
0.5-4m/min |
|
Conveyor height |
820mm |
|
Machine size |
3300*1600*1100mm |
|
Max glass width |
1150mm |
