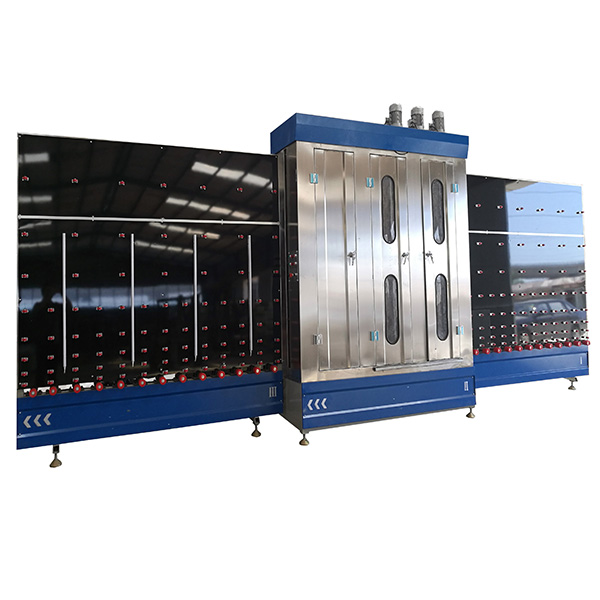

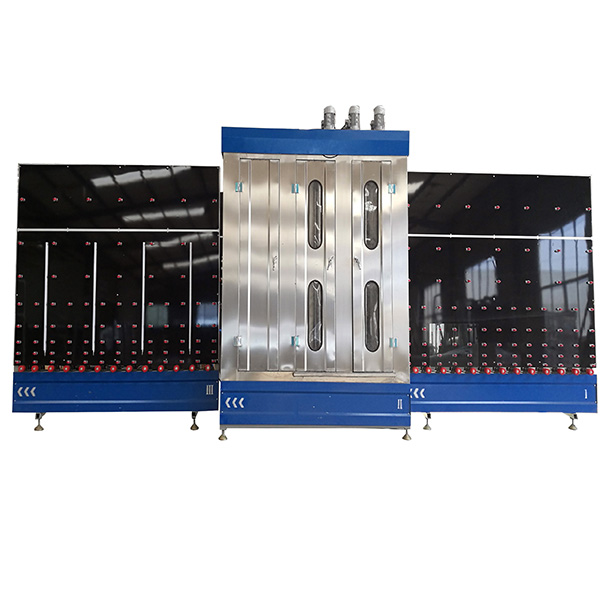

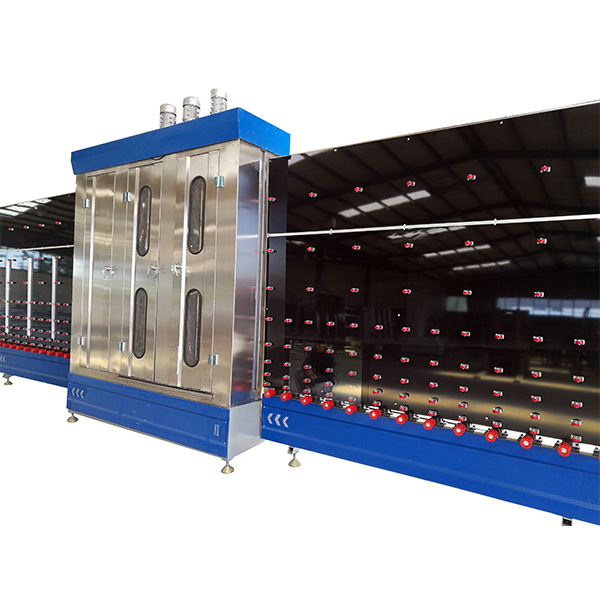

Glass Vertical Washing And Drying Machine JGX1800
PRODUCT Description
Model |
JGLX1800 |
Power supply |
380V 50HZ 3 phase or 3 Phase,220v ,60hz |
Working size |
1800*2500mm |
Min glass size |
300*500mm |
Washing speed |
0-8m/min |
Power |
21kw |
Brusher |
3pairs(6 pcs) |
Hot knife |
1 pair |
Sponge roller |
1 pair |
Washing thickness |
3-15mm |
Feeding section |
2200*700*2200mm |
Washing and Drying section |
2000*1200*2600mm |
Outlet section |
2500*700*2200mm |
Oversize |
6800*2300*2500mm |
Can wash LOW-E Glass/Multi-coated glass |
Feature
· It is painted by an electrostatic paint for protection against a rust and scratchs.
· Conic moving gears are made from a special steel alloy.
· Nuts corrosion-proof, apertures for nuts aluminium.
· A working direction of action with left on the right party.
· Brushes from above and from below have adjustment for approach.
· The electric system corresponds to safety rules.
· Heating up plates and water tank from stainless steel.
· Special brushes for reflecting glasses.
· Adjustment of speed of a running tape.
· Covers stainless steel windows.
· LOW-E option
· Power: 380V 50HZ 3 phase or 3 Phase,220v ,60hz
· CE CERTIFICATE for European Union
