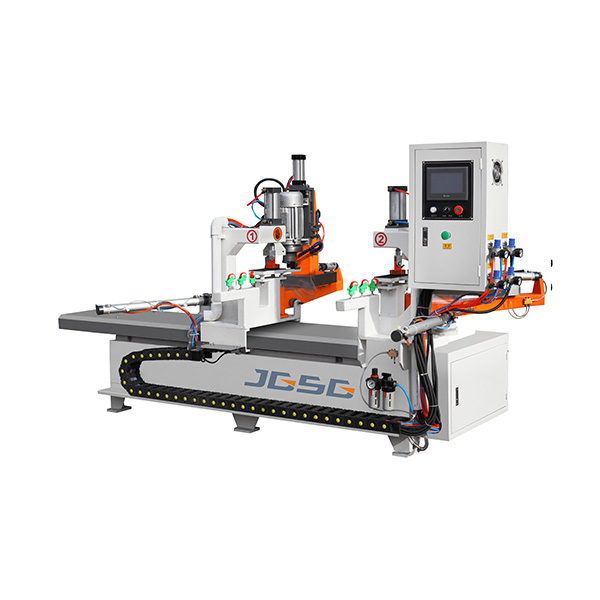

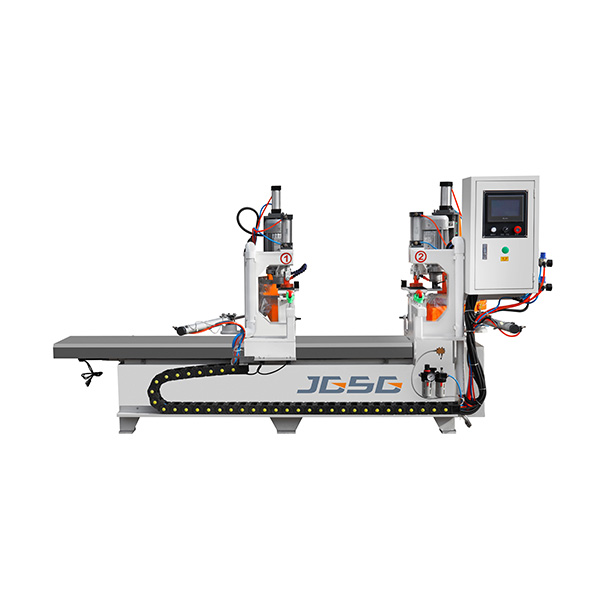

JGD1600/2300

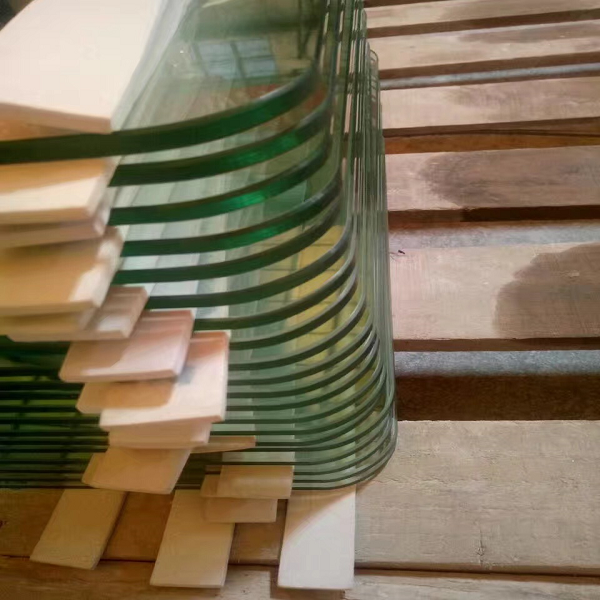

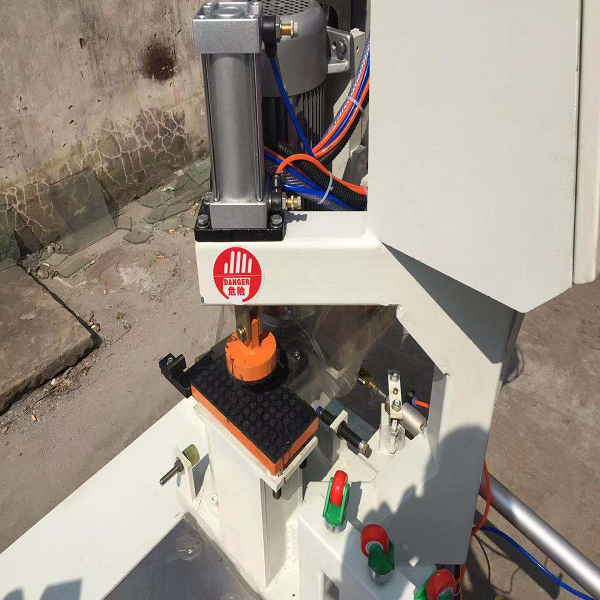

  • This machine can clamp flat glass by pneumatic pressure or suction plate and can change right angle of glass into shape of round edge,
  • square edge and duckbilled edge,grinding wheels can be simultaneously equipped to perform coarse grinding,fine grinding and polishing.

PRODUCT Description

This machine can clamp flat glass by pneumatic pressure or suction plate and can change right angle of glass into shape of round edge,square edge and duckbilled edge,grinding wheels can be simultaneously equipped to perform coarse grinding,fine grinding and polishing.

Main Model

 JGD1600/2300

Max glass size

2200mm-2700mm

Glass thickness

2-15mm

Overall size

1700*1000*1600mm 1m

2300*1000*1600 1.5m

3000*1000*1600mm 3m

power

1.5kw

weight

500KG  /560KG   /650KG

Min glass size

280*280mm

Rangle

R5-R65

Straight cut angle

5mm-65mm
