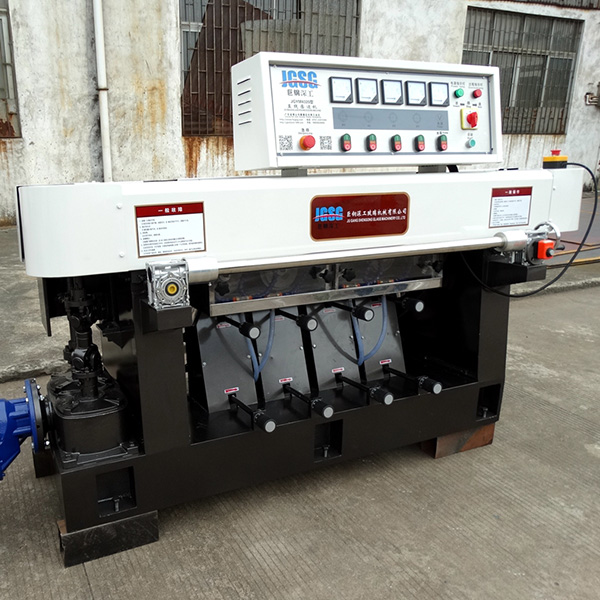

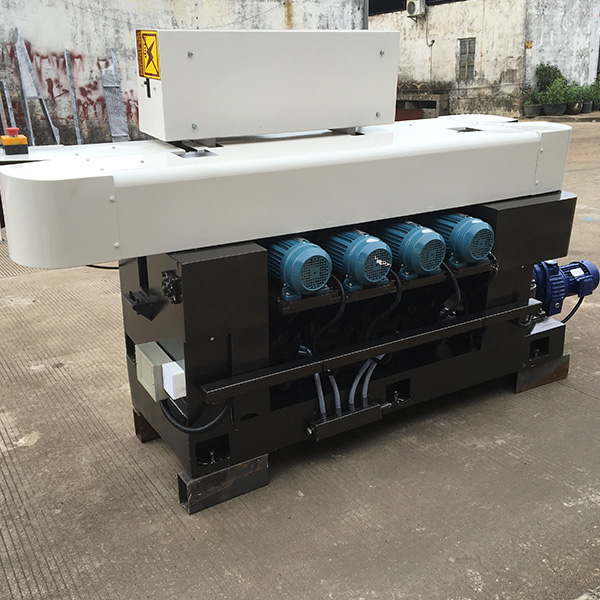

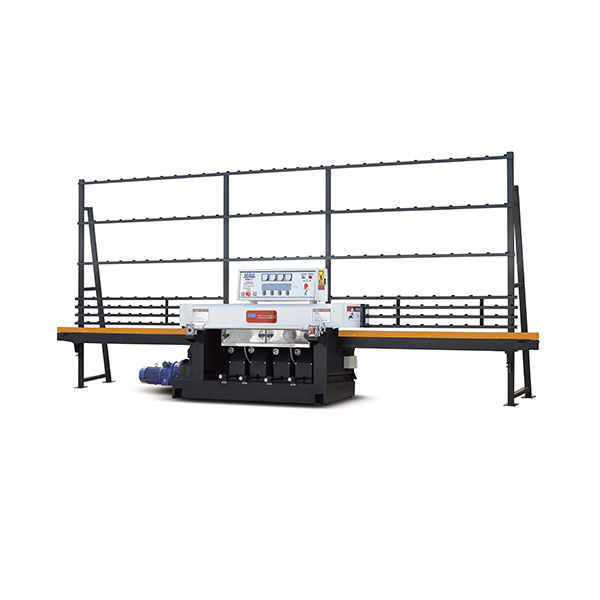

Glass Round Edge Machine JGYM4320

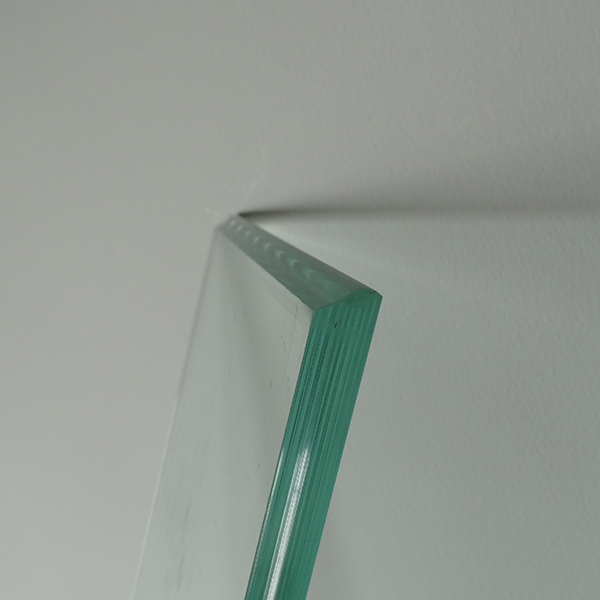

JGYM4320 can be equipped with different polishing wheels,aimed at grinding of linear round edge and linear duckbill shape edge of flat glass
Coarse grinding,fine grinding and polishing are finished at one time,and glass’s after-processing effect is close to the brightness of glass matrix,
It Can change the processing speed arbitrarily.

PRODUCT Description

JYMZ7320 can be equipped with different polishing wheels,aimed at grinding of linear round edge and linear duckbill shape edge of flat glass,Coarse grinding,fine grinding and polishing are finished at one time,and glass’s after-processing effect is close to the brightness of glass matrix,It Can change the processing speed arbitrarily.

Model	JGYM4320
power supply	380V/415V/220V 50HZ/60HZ
Power	11.25KW
Min.glass size	80*80mm
Glass thickness	3-20mm
Weight	1800KG
Transmission	Stepless speed regulation
Process speed	0.7-5m/min
Workbench height	2500mm
Machine size	600010002500mm
Glass parallel error	±0.2mm/m
Glass chamfer bevel error	±0.2mm/m
Glass diagonal error	±0.3mm/㎡
Bevel location error	±0.2mm/㎡
