JGYM7320

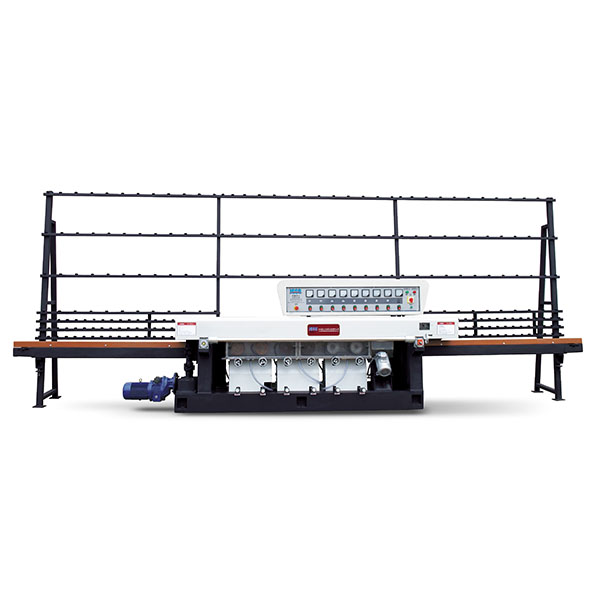

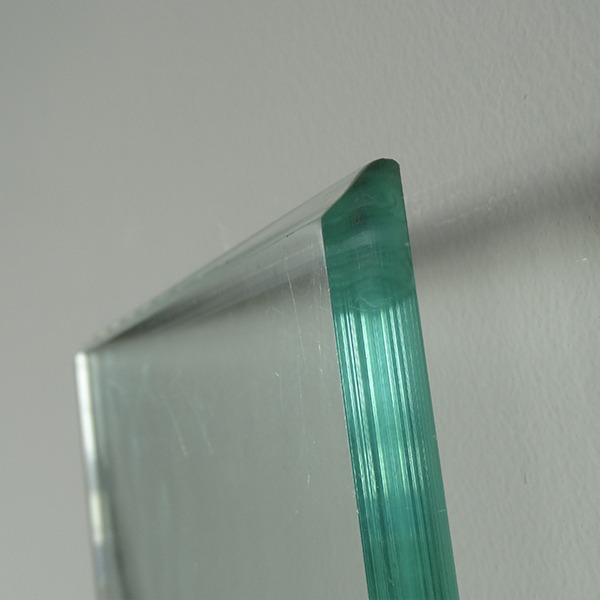

  • JGYM7320 can be equipped with different polishing wheels,aimed at grinding of linear round edge and linear duckbill shape edge of flat glass
  • Coarse grinding,fine grinding and polishing are finished at one time,and glass’s after-processing effect is close to the brightness of glass matrix
  • It Can change the processing speed arbitrarily.

PRODUCT Description

JGYM7320 can be equipped with different polishing wheels,aimed at grinding of linear round edge and linear duckbill shape edge of flat glass,Coarse grinding,fine grinding and polishing are finished at one time,and glass’s after-processing effect is close to the brightness of glass matrix,It Can change the processing speed arbitrarily.

Model

JGYM7320

power supply

380V/415V/220V  50HZ/60HZ

Power

15.65KW

Min.glass size

80*80mm

Glass thickness

3-20mm

Weight

2800KG

Transmission

Stepless speed regulation

Process speed

0.7-5m/min

Workbench height

2500mm

Machine size

7000*1000*2500mm

Glass parallel error

±0.2mm/m

Glass chamfer bevel error

±0.2mm/m

Glass diagonal error

±0.3mm/

Bevel location error

±0.2mm/
