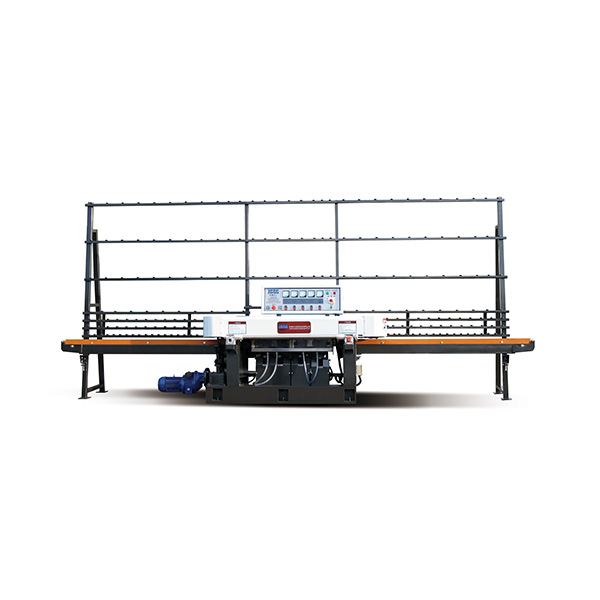

JGZM4325-45°

PRODUCT Description

This machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time.The flat surface after polishing is close to bright and clean degree of glass matrix.When adjusting different processing thickness (able to refer to data display instrument on front-axle beam),former chamfering grinding head can move simultaneously along with the front-axle beam.It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,and thereby is necessary equipment for glass deep processing.

Model

JGZM4325-45°

Power supply

380v /50hz(can be change)

Max glass size

2500*3500mm

Min glass size

80*80mm

Power

10.5kw

Glass thickness

3-25mm

Feeding Speed

0.7-5m/min

Dimension

6000*1000*2500mm

Weight

1800kg

4325-45 1.png

4325-45 2.png
