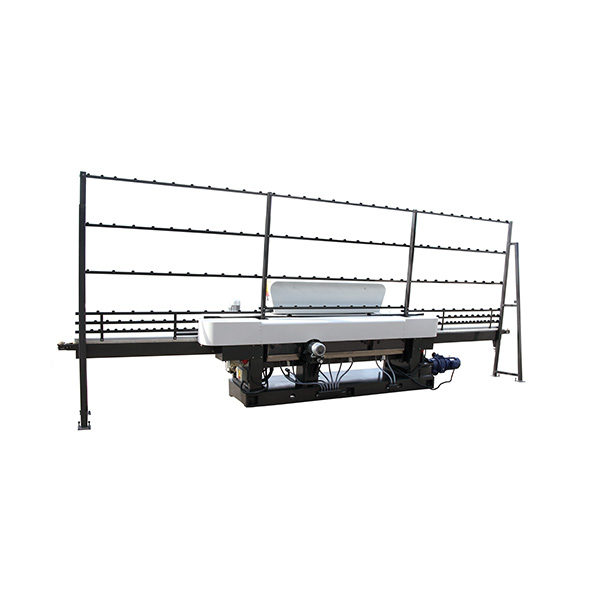

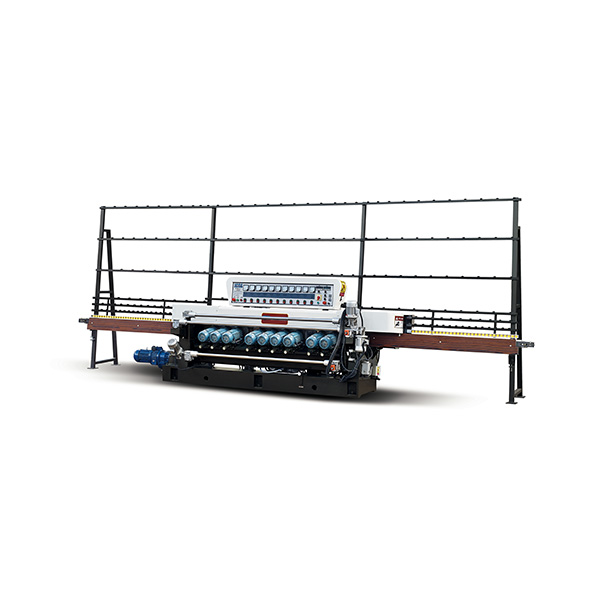

JGXM361SJ

  • Glass beveling machine with 10 motors adopts front-axle beam elevating structure and can processes mosaic glass and super-wide sloping glass,moreover
  • every transmission part is equipped with electric function,It is suitable for edging and polishing of flat glass’s bevel and bottom edge
  • combining bevel edge’s coarse grinding ,fine grinding and polishing with bottom edge’s grinding at one time.Swing frame structures are forward and backward in synchronization

PRODUCT Description

Glass beveling machine with 10 motors adopts front-axle beam elevating structure and can processes mosaic glass and super-wide sloping glass,moreover,every transmission part is equipped with electric function,It is suitable for edging and polishing of flat glass’s bevel and bottom edge,combining bevel edge’s coarse grinding ,fine grinding and polishing with bottom edge’s grinding at one time.Swing frame structures are forward and backward in synchronization,The clamp plate using the forging parts,middle splint are refined with 40cr materials,so their wear ability can reach an incalculable limitation.In addition,the motors for motors adopt international famous brand,It adopts linear motors,low noise and few malfunctions,The overall pendulum angle of double screw is controlled by the motors and digital device displays the thickness of processes glass,possessing the characteristics of advanced structure,high working precision and easy operation.Overall,this is a practical beveling machine made up of good-quality components.

Model

JGXM361SJ

power supply

380V/415V/220V  50HZ/60HZ

Power

21KW

Max.bevel width

35mm

Min.glass size

30*30mm

Glass thickness

3-12mm

Weight

3500KG

Bevel angle

0-27°

Transmission

Stepless speed regulation

Process speed

0.7-3.5m/min

Workbench height

2500mm

Machine size

7000*1200*2500mm

Glass parallel error

±0.2mm/m

Glass chamfer bevel error

±0.2mm/m

Glass diagonal error

±0.3mm/

Bevel location error

±0.2mm/
