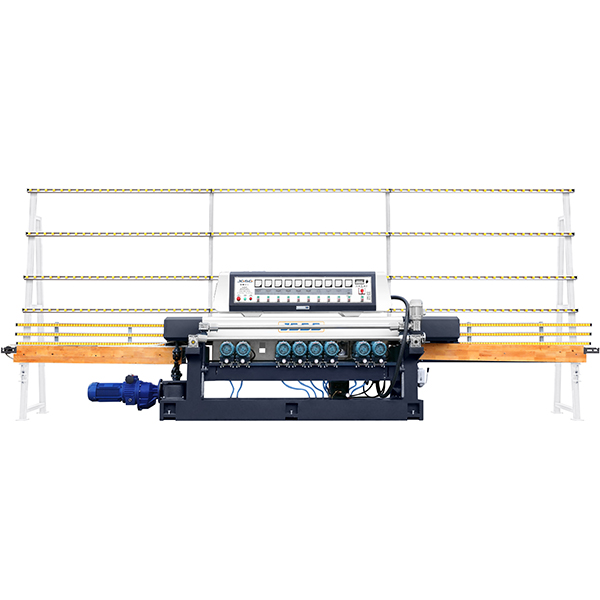

Glass Beveling Machine JGXM261

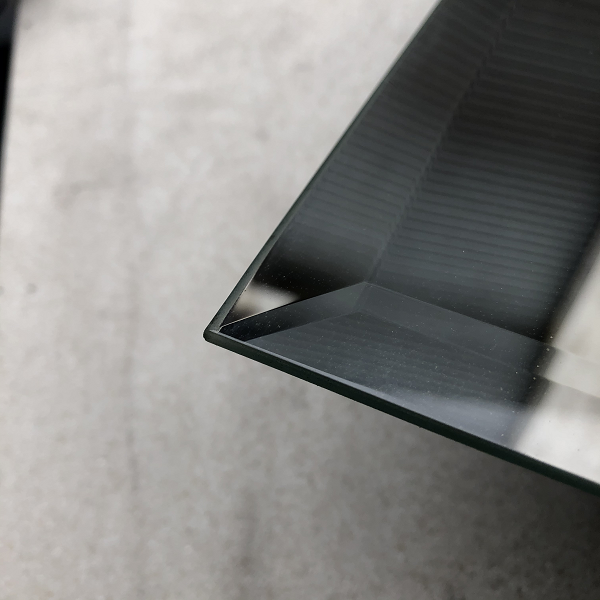

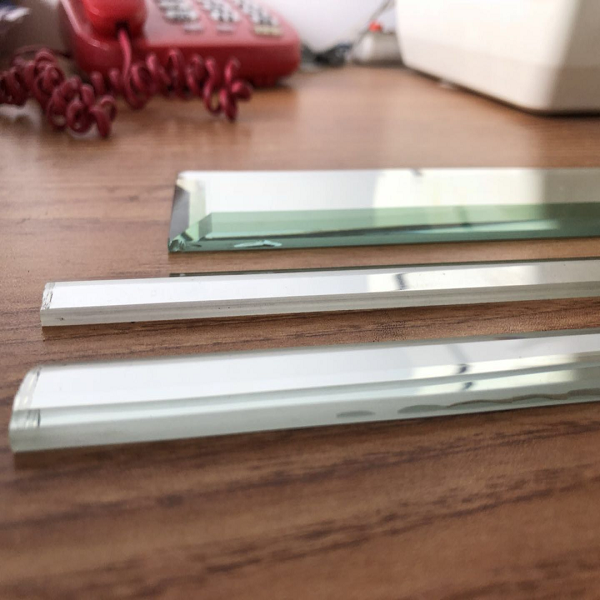

This machine is suitable for edging and polishing of flat glass’s bevel an bottom edge in bulk,combing bevel edge’s coarse grinding ,fine grinding and polishing with bottom edge’s polishing at one time.
The clamp plate using the forging parts,middle splint are refined with 40cr materials,so their wear ability can reach an incalculable limitation,In addition,the motors for polishing heads adopt international famous brand,Overall,
this is a practical beveling machine made up of good-quality components.

PRODUCT Description

This machine is suitable for edging and polishing of flat glass’s bevel an bottom edge in bulk,combing bevel edge’s coarse grinding ,fine grinding and polishing with bottom edge’s polishing at one time.The clamp plate using the forging parts,middle splint are refined with 40cr materials,so their wear ability can reach an incalculable limitation,In addition,the motors for polishing heads adopt international famous brand,Overall,this is a practical beveling machine made up of good-quality components.

Model	JGXM261
power supply	380V/415V/220V 50HZ/60HZ
Power	21KW
Max.bevel width	35mm
Min.glass size	80*80mm
Glass thickness	3-12mm
Weight	3500KG
Bevel angle	0-27°
Transmission	Stepless speed regulation
Process speed	0.7-3.5m/min
Workbench height	2500mm
Machine size	700012002500mm
Glass parallel error	±0.2mm/m
Glass chamfer bevel error	±0.2mm/m
Glass diagonal error	±0.3mm/㎡
Bevel location error	±0.2mm/㎡
