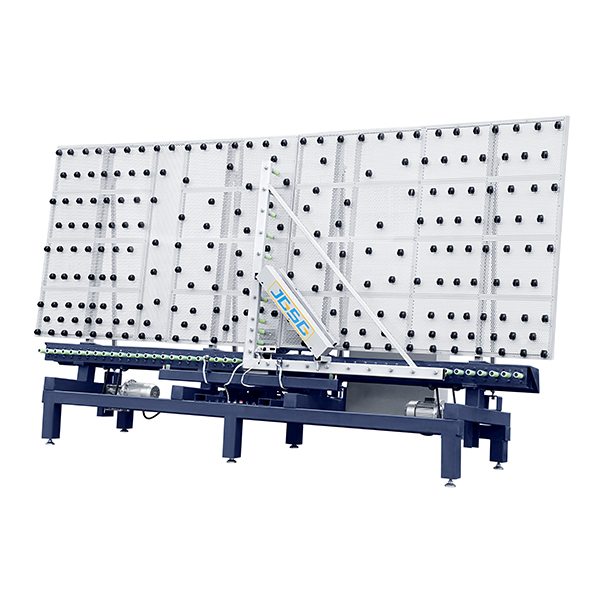

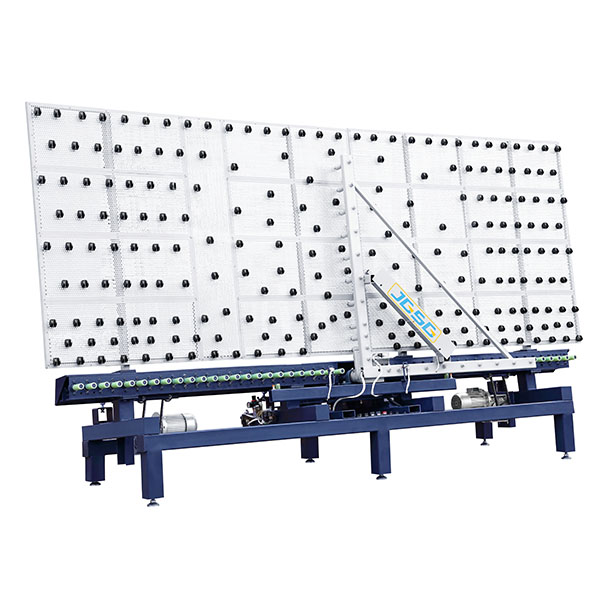

Turntable

PRODUCT Description

The main purpose of the turning table is to connect two vertical edge grinding machines. Instead of manually flipping the glass through mechanical inversion, it is transferred to the next edge grinding machine for edge processing after 90 ° rotation. Generally, four straight edge machines are used. Add three turning tables to form a vertical edging production line. This production line generally requires only three workers to operate: one for loading, one for machine debugging, and one for next. Effectively improve production efficiency and increase the degree of automation of glass edging and reduce labor costs. This turning table is controlled by PLC. Both the turning frame and the glass backing frame are made of industrial aluminum, and also have safety protection nets. The overturning structure is different from the traditional reducer directly connected to the overturning frame. Instead, it uses a patented design of indirect transmission of lever and link. Can greatly improve the efficiency of flipping. In addition, based on the function of flipping the glass, the function of the chamfer of the national patent is innovatively designed, that is, the chamfering is completed in the process of flipping the glass. The existing method of chamfering the safety corner is to perform secondary conveying and clamping to a dedicated chamfering machine to perform the chamfering safety corner after processing by the edging machine.

Voltage	380V, 50Hz
Transmission speed	0.5~20m/min
Minimum flip size	350×350mm
Maximum flip size	2500mm×2500mm
Flip glass thickness	3-19mm
Total voltage	3KW
Weight	≈750kg
Oversize	5.3×1.2×2.5m
Table height	750±30mm
