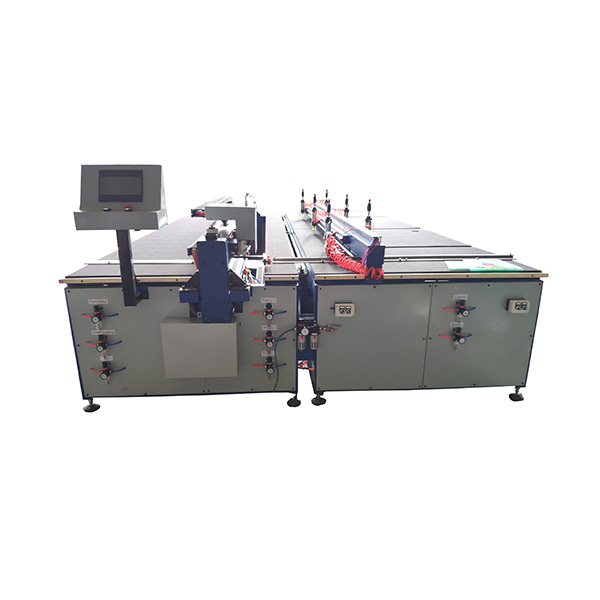

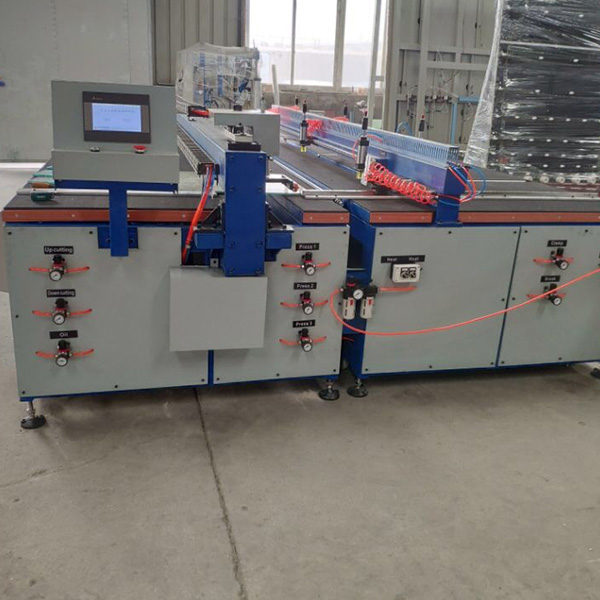

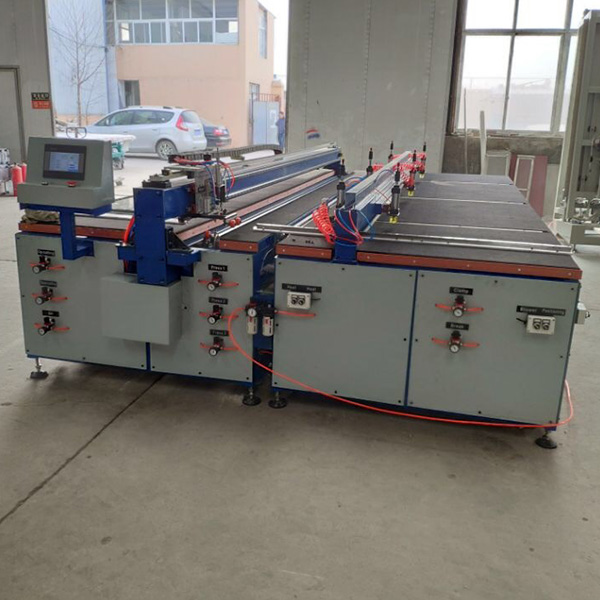

SWD—3826-Semi-automatic-Laminated-Glass-Cutting-Machine

  • Equipped with two cutters (upper & bottom sides), SWD-3826 is designed to cut thick float glass and laminated glass.
  • It has advantages of easy operation, stable working and high precision.

PRODUCT Description

Introduction:
Equipped with two cutters (upper & bottom sides), SWD-3826 is designed to cut thick float glass and laminated glass. It has advantages of easy operation, stable working and high precision.

Functions:

Machine body adopts welded tube which makes whole machine very stable. Application of synchronous belt convey system, PLC control system, imported electrical spare parts, stepping motor and LCD makes it much convenient and stable. Upper & bottom cutter can work at same time, which ensures high conformity and easy breaking after cutting.

Parameters:

Max. glass cutting size

3660×2440mm

Min. glass cutting size

100×100mm

Cutting glass thickness

3+0.38+3----10+3.04+10mm

( laminated glass )

Cutting efficiency

3-4 minutes/big piece

Cutting Error ( parallel )

≤±0.5mm

Diagonal Error

≤±1mm/m

Cutter life

30000-50000 meters

Workers

1-2 person

Operation

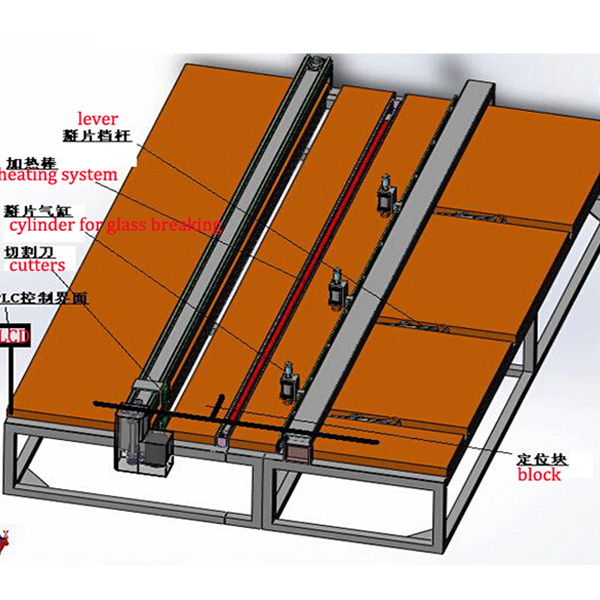

Set cutting size ( move block to the location where needs to be cut, then fix it )----loade glass to block location---operate cutters ( press “ start” button on LCD )---move glass to lever location---start cylinder to clamp glass ---start lever ---start lever button which is under cylinder ( both sides of laminated glass has been broken )----heat glass ( select heating temperature according to thickness of PVB film )

Handling and Installation:

Handle with care, no collision ! Guide rails and beams are forbidden to support during lifting. Horizontal ruler can be used to revise worktable, and table bracket can be adjusted to ensure flatness.

Maintenance:

Warranty period: one year ( Wearing parts like cutters are not included ); international express costs should be beard by buyer
