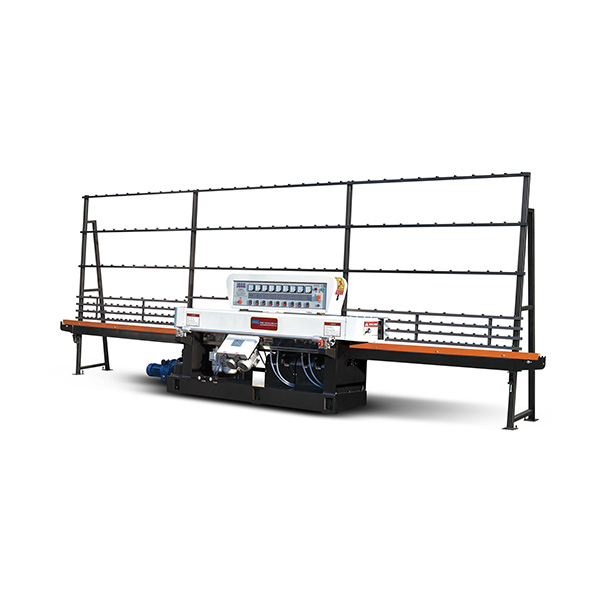

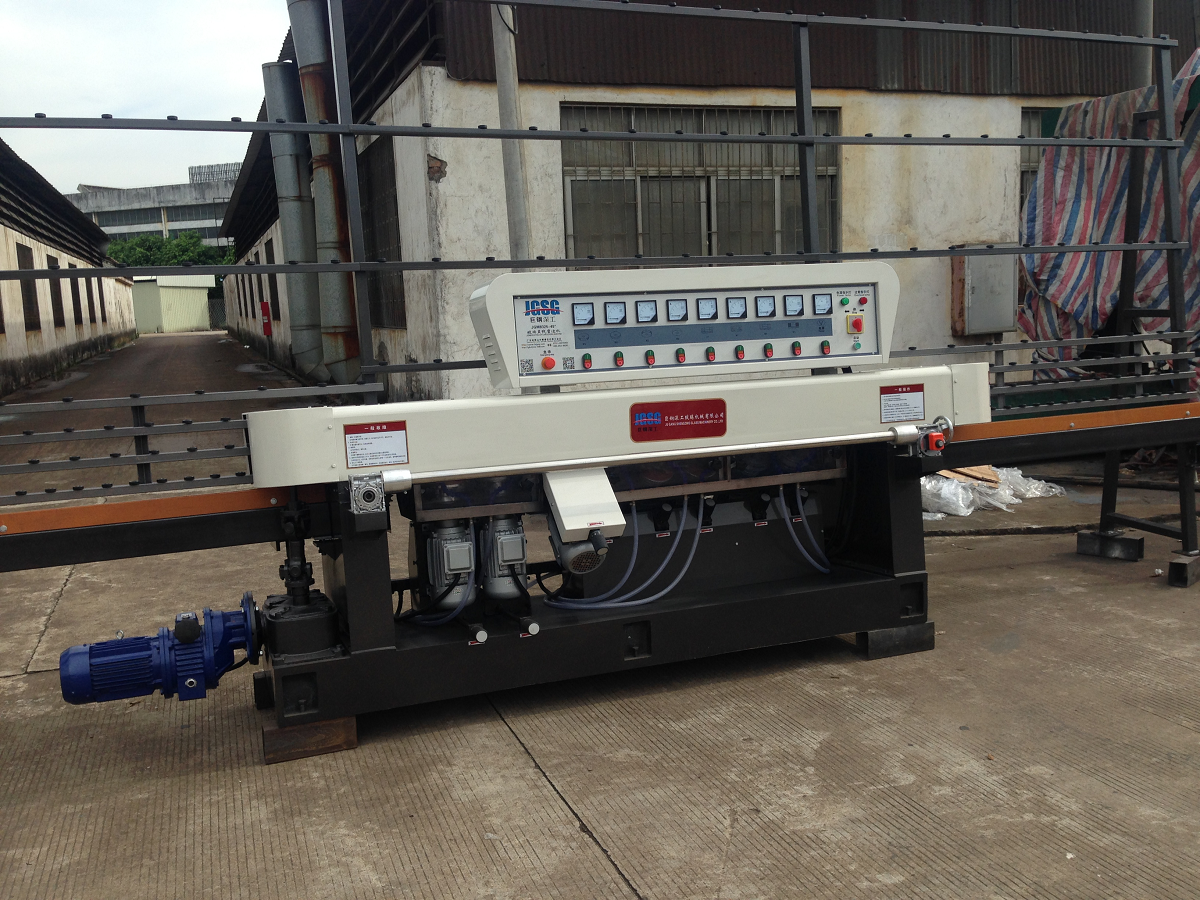

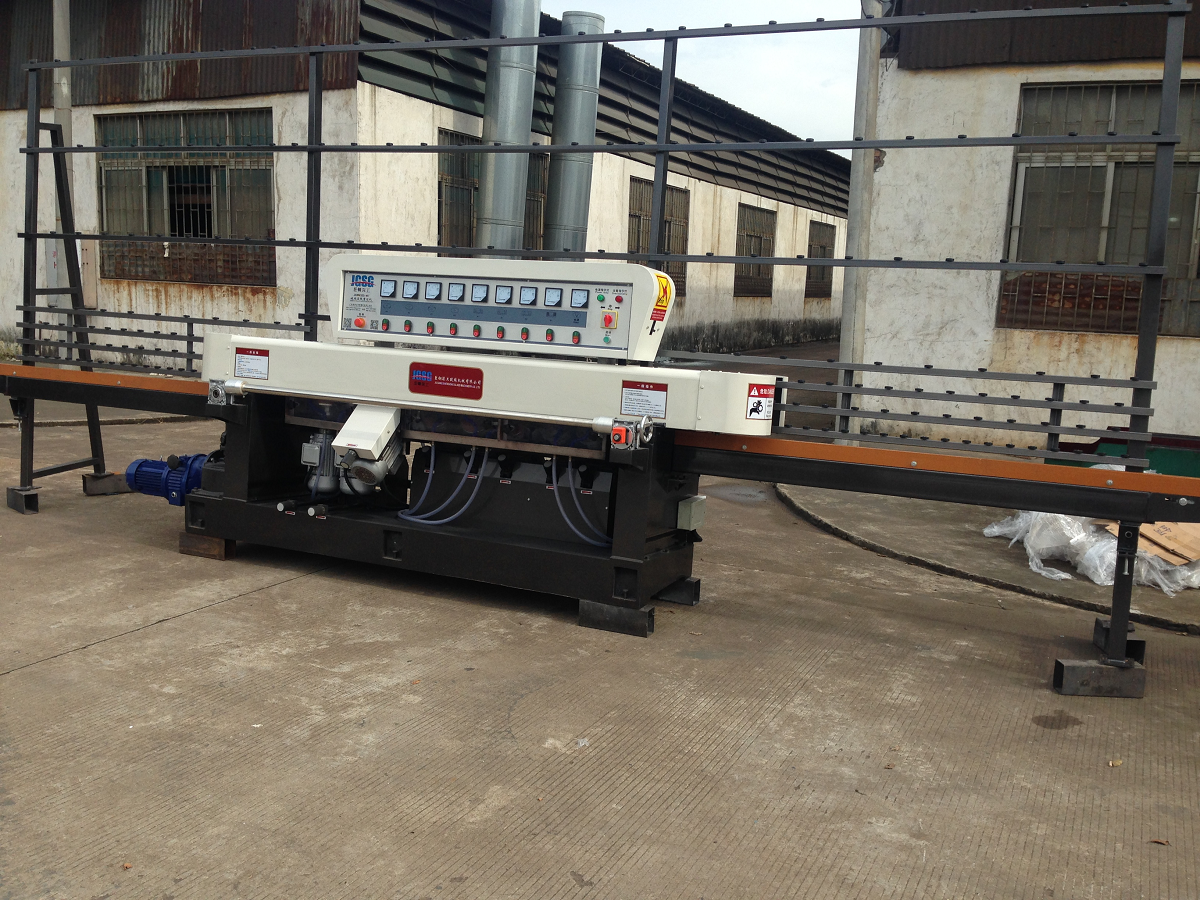

Glass Straight Edge Machine JGZM8325-45°
- The machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding and polishing at one time.
- The flat surface after polishing is close to bright and clean degree of glass matrix.when adjusting different processing thickness(able to refer to data display instrument on front-axle beam)
- ormer chamfering grinding head can move simultaneously along with the front-axle beam.It possesses the advantages of advances structure,
PRODUCT Description

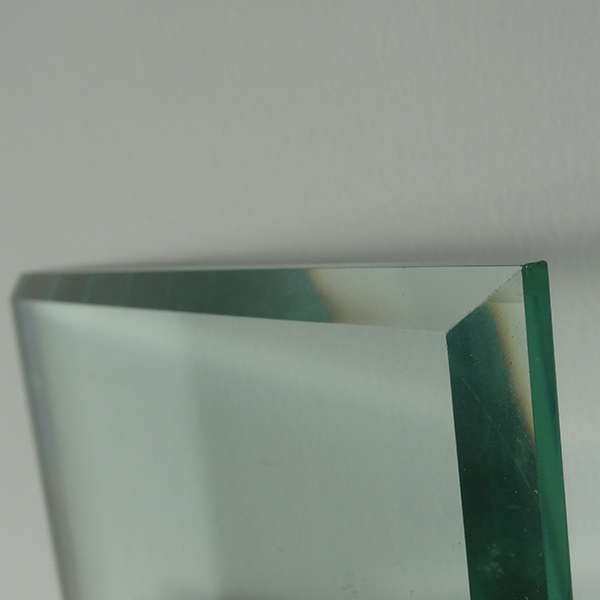

The machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding and polishing at one time.The flat surface after polishing is close to bright and clean degree of glass matrix.when adjusting different processing thickness(able to refer to data display instrument on front-axle beam),former chamfering grinding head can move simultaneously along with the front-axle beam.It possesses the advantages of advances structure,high working precision,easy operation and capacity of continuous processing for the same thickness,definitely being necessary equipment for glass deep processing.
Model |
JGZM8325-45° |
power supply |
380V/415V/220V/ 50HZ/60HZ |
Power |
17.25KW |
Min.glass size |
80*80mm |
Glass thickness |
3-25mm |
Weight |
2800KG |
Transmission |
Stepless speed regulation |
Process speed |
0.7-5m/min |
Machine size |
6800*1000*2500mm |
Glass parallel error |
±0.2mm/m |
Glass chamfer bevel error |
±0.2mm/m |
Glass diagonal error |
±0.3mm/㎡ |
Bevel location error |
±0.2mm/㎡ |
