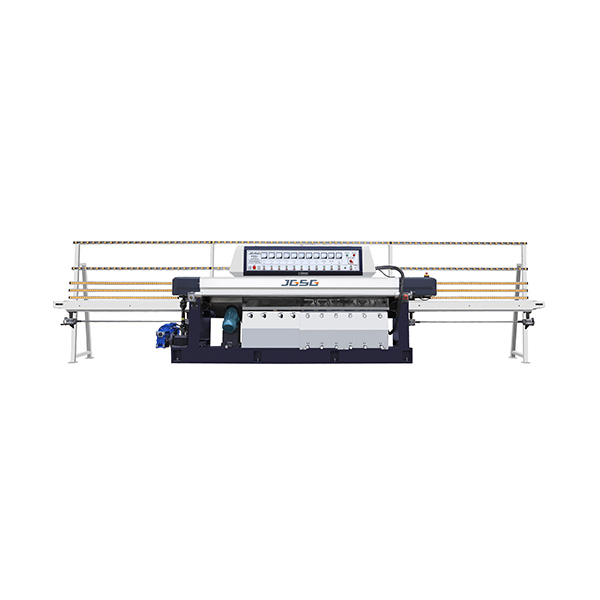

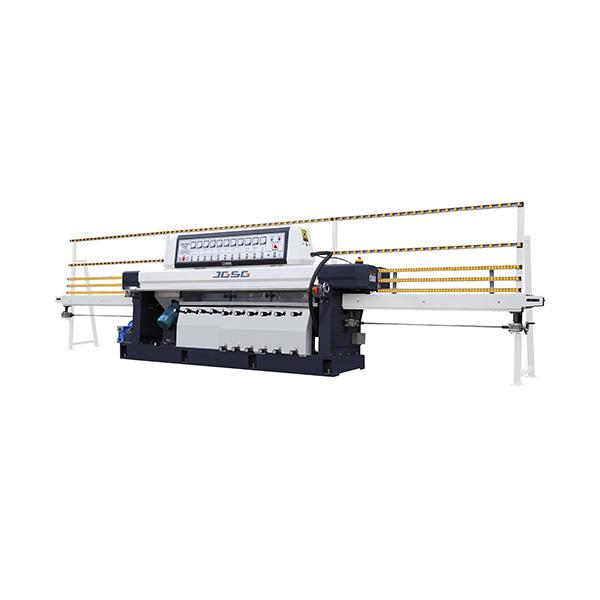

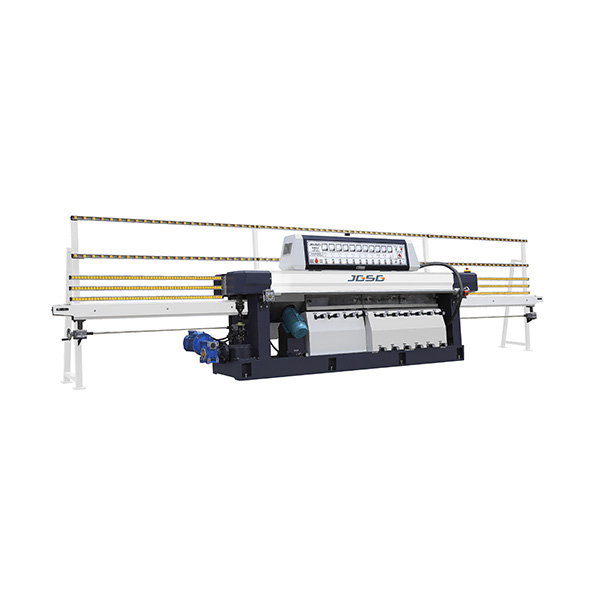

Automatic Stone Edge Machine JGZM11-45°

The machine can be equipped with different grinding wheels,grinding the straight round edge of the flat-skin material,straight-line duck-bulled edge and straight line shaped edge coarse grinding ,
fine grinding ,and polishing are completed at one time,and the effect after processing is close to that of the original stone sheet,Frequency control feed,can be arbitrary conversion processing speed.

PRODUCT Description

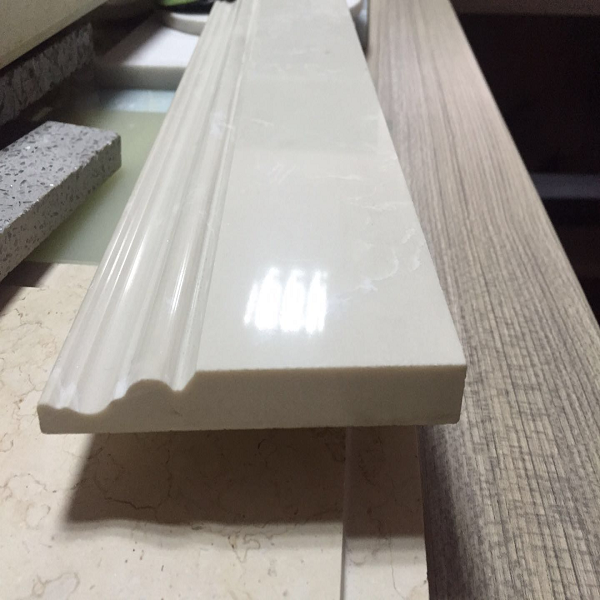

The machine is suitable for grinding straight stone and 45°edging stones with different sizes and thickness.The 45°oblique plane and straight side plane processing can be finished by rough,fine edging and polishing at once.After polishing,it is close to the smoothness of the stone matrix,Using variable frequency speed feed,it can adjusting the thickness of different processing,it can be adjusted according to the digital display table on the front beam.This machine has the advantages of advanced structure,high accuracy,convenient operation and continuous thickness machining.It is a necessary equipment for deep processing of stones.

Model	JGS11-45°
power supply	380V/415V/220V 50HZ/60HZ
Power	34.8KW
Min.glass size	100*100mm
Glass thickness	12-60mm
Weight	3800KG
Transmission	Stepless speed regulation
Process speed	0.7-5m/min
Machine size	760010002000mm
