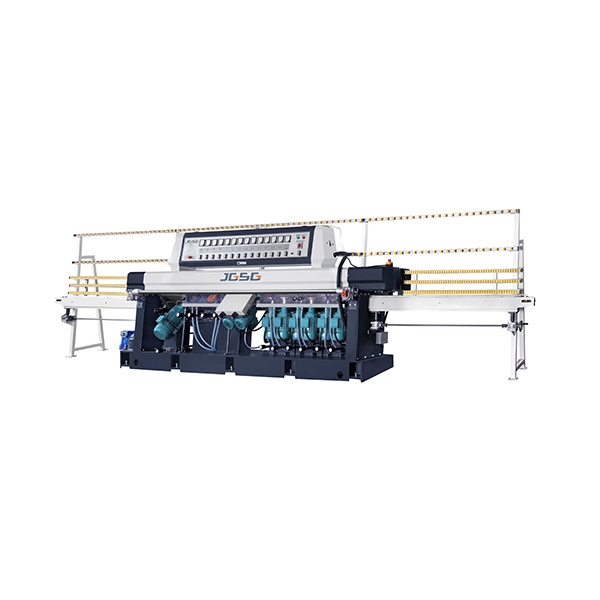

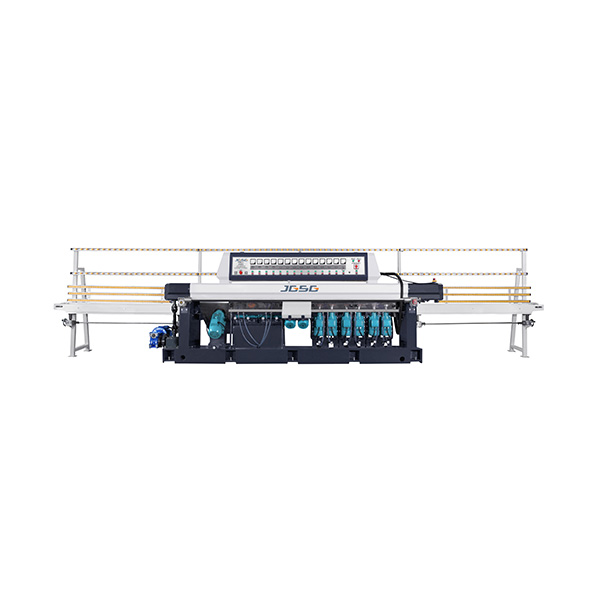

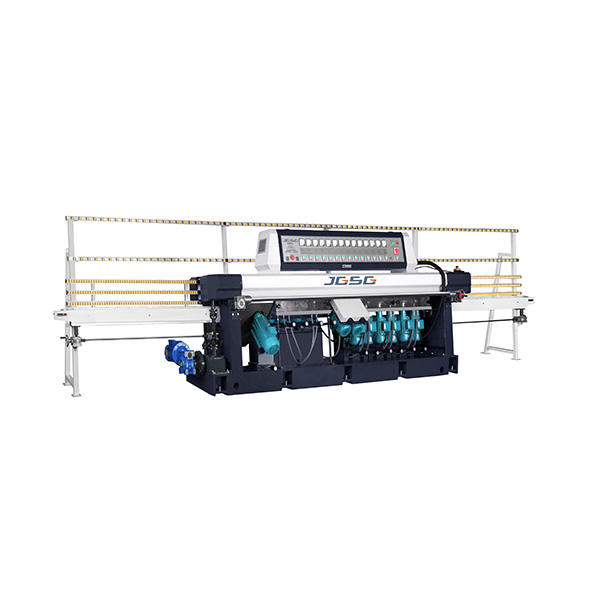

JGS13-45°

  • The machine can be equipped with different grinding wheels,grinding the straight round edge of the flat-skin material,straight-line duck-bulled edge and straight line shaped edge coarse grinding ,fine grinding ,
  • and polishing are completed at one time,and the effect after processing is close to that of the original stone sheet,Frequency control feed,can be arbitrary conversion processing speed.

PRODUCT Description

The machine can be equipped with different grinding wheels,grinding the straight round edge of the flat-skin material,straight-line duck-bulled edge and straight line shaped edge coarse grinding ,fine grinding ,and polishing are completed at one time,and the effect after processing is close to that of the original stone sheet,Frequency control feed,can be arbitrary conversion processing speed.

Model

JGS13-45°

power supply

380V/415V/220V  50HZ/60HZ

Power

40KW

Min.glass size

100*100mm

Glass thickness

12-60mm

Weight

4200KG

Transmission

Stepless speed regulation

Process speed

0.7-5m/min

Machine size

8000*1000*2000mm
